Applying OOP principles inside n8n Code nodes

[Haian_Abou-Karam]

Note: This is not about turning n8n into a fully object-oriented system.
Instead, this approach applies object-oriented design principles inside Code nodes to improve structure, reusability, and resilience in complex workflows.

Introduction: The Spark in the Inbox Inferno

If you’ve ever built a complex AI agent workflow, you know how quickly the canvas can turn into a chaotic web of lines, IF nodes, and scattered data transformations.

That was exactly my situation during the n8n Community Challenge in February 2026, known as the “Inbox Inferno.” I was working on version 0.92 of my workflow when I hit a wall. Managing state, passing AI instructions, and formatting outputs across dozens of nodes felt brittle. I was also building in a highly constrained environment, relying heavily on the lightweight google/gemma-3-4b model to do the heavy lifting.

In my previous deep dive, Beyond Trial and Error: Applying a Modified Waterfall SDLC, I detailed how I used a structured software development lifecycle to plan the project. However, version 0.92 taught me that a robust process needs a more robust architecture. That’s when the idea hit me: Why not treat my n8n workflow like a traditional software application? By applying Object-Oriented Programming (OOP) and Domain-Driven Design (DDD) principles to my Code nodes, I realized I could encapsulate logic, enforce predictable data structures, and dramatically simplify my visual canvas. Here is the story of how I built version 1.0.

My Journey: Shifting the Paradigm

Traditionally, we treat n8n as a functional, procedural pipeline—data flows in, gets transformed, and flows out. But when dealing with unpredictable LLM outputs (especially smaller models like Gemma), procedural design often requires endless Switch and If nodes to catch hallucinations.

I decided to shift gears. Instead of passing raw JSON properties from node to node, I started instantiating “Objects.” I created JavaScript classes within n8n Code nodes that had strict constructors, default fallback states, and specific methods.

The Benefits of OOP in n8n

• Encapsulation: By keeping business rules (like customer tier logic) inside specific “Class” objects, the rest of the workflow doesn’t need to know how a decision was made, only what the decision is.
• Defensive Programming: Using constructors allows you to set default values easily, preventing downstream nodes from crashing if an AI model drops a field.
• Visual Simplicity: Hundreds of lines of routing logic are tucked into specialized Code nodes, leaving the n8n canvas clean.

Explanations & Code: How I Built Version 1.0

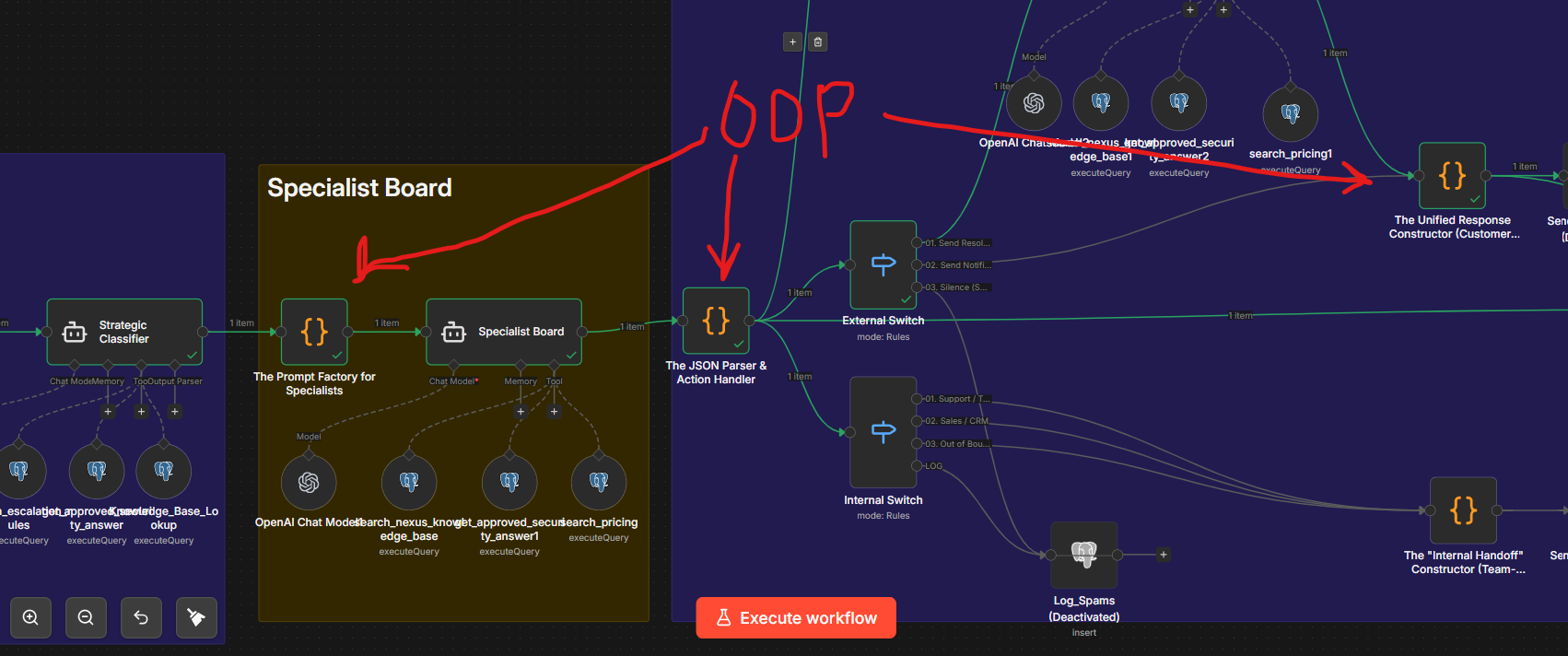

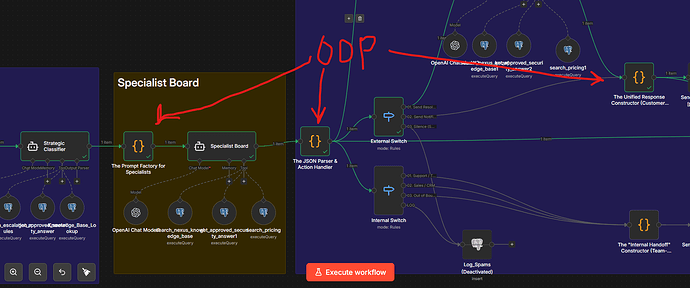

1. The Prompt Factory for Specialists (Polymorphism)

Instead of hardcoding a massive, messy prompt, I created a “Factory” node. This code inspects the instantiated Customer object and dynamically assigns a “Specialist Role” with a specific mandate. This is essentially polymorphism: the AI agent node behaves differently based on the “Class” of the user passed into it.

// 1. DATA EXTRACTION - THE "REACH BACK"
const sourceNode = $('Class: Instantiate CustomerEntity').first().json;
const customer = sourceNode.Customer || {};
const msg = sourceNode.Message || {};

// 2. DEFINE SPECIALIST FAMILIES
const planTier = (customer.PlanTier || "New Prospect").toLowerCase();

const families = {
    enterprise: { role: "Enterprise Success Architect", mandate: "High-level technical authority." },
    professional: { role: "Professional Tier Specialist", mandate: "Business support. Resolve bugs." },
    starter: { role: "Starter Tier Guide", mandate: "Self-service only. Provide docs." },
    prospect: { role: "Prospect Frontline Ambassador", mandate: "Convert leads or silence noise." }
};

let selected = families.prospect;
if (planTier === 'enterprise') selected = families.enterprise;
else if (planTier === 'professional') selected = families.professional;
else if (planTier === 'starter') selected = families.starter;

// 6. RETURN OBJECT
return {
    ...sourceNode,
    Specialist_Prompts: {
        System_Prompt: `You are the ${selected.role}. Mandate: ${selected.mandate}...`,
        User_Prompt: `Inquiry from ${customer.Name}: "${msg.Raw_Body}"`,
        Role: selected.role
    }
};

2. The JSON Parser & Action Handler (The Defensive Shield)

Working with gemma-3-4b means you must be prepared for malformed JSON. I used a dedicated parser node to act as a “try/catch” shield. If the AI scrambled the output, this node caught the error and instantiated a safe fallback state (routing to HUMAN_REVIEW), ensuring the workflow never stalled.

// Safely attempt to parse the JSON from the LLM
  try {
    parsedData = JSON.parse(rawText);
  } catch (error) {
    // HARD FALLBACK: If the AI failed, send it to a human.
    parsedData = {
      thought_process: "CRITICAL: AI failed to output valid JSON. Fallback triggered.",
      decision_vector: { output_channel: "HUMAN_REVIEW", priority_level: "High" },
      external_action: { type: "NONE", subject: "Error Parsing Output", body: "" },
      internal_action: { type: "CREATE_DRAFT", target_department: "Technical_Support", payload: rawText }
    };
  }

3. Smart Internal Routing (Handoff Constructor)

To ensure data flow remained consistent, I built a constructor that maps the AI’s technical output to real-world departments. This node handles the “Operations” mapping and correctly manages the “Drop/Silence” state so that spam never hits an inbox.

const deptMap = {
    "Technical_Support": "[email protected]",
    "Operations": "[email protected]",
    "General": "[email protected]"
};

let targetEmail = deptMap[item.target_department] || deptMap["General"];
if (item.output_channel === "SILENCE") {
    targetEmail = "[email protected]";
}

Expanding the Horizon: Other OOP Implementations

The ideas explored in this challenge aren’t just limited to AI email triage. You can implement OOP concepts across various workflows:

• API Wrappers: Create a class to handle authentication and rate limiting for complex APIs.
• State Machines: Use classes to manage the state of long-running approval workflows (e.g., Draft → Pending → Approved).
• Data Normalization: Ingest messy webhooks from different tools and normalize them into one standard “Order” object.

Trade-offs and When Not to Use This

This approach is powerful, but it’s not always the right choice.

• It reduces visual clarity on the canvas, since logic moves into Code nodes
• Debugging can become harder compared to standard node-based flows
• It requires solid JavaScript knowledge
• It may be overkill for simple workflows

For small or straightforward automations, native n8n nodes are often the better choice.

Before vs After

Before:

• Logic scattered across many nodes
• Repeated validation and parsing
• Fragile error handling

After:

• Centralized logic inside structured classes
• Reusable components (constructors, parsers, builders)
• More predictable and resilient execution

Final Thoughts

This approach is not about replacing n8n’s visual paradigm, but about extending it.

By combining node-based orchestration with structured code, we can handle more complex, AI-driven workflows without turning the canvas into chaos.

Used correctly, this hybrid style can significantly improve maintainability, scalability, and reliability in advanced automations.

Conclusion

Combining the Waterfall SDLC planning from my previous post with an OOP architecture in Version 1.0 has completely changed how I approach n8n. By moving away from purely visual trial-and-error and borrowing from decades of software engineering principles, I was able to build a pipeline that is robust, readable, and highly scalable—even when using smaller models like Gemma.

OOP isn’t necessary for every simple automation, but when your workflows start to resemble spaghetti, wrapping your logic into structured JavaScript objects is the exact fix you need.
