All workflows vanishes in self-hosted n8n

[joaolima]

I’m not really sure what happens, but everyday my team’s workflows are just gone. We investigated a bit and it’s probably a migration that is corrupting the DB, but we don’t know how to fix it. We are manually recreating the workflows from backup every day, our n8n is currently in latest version. We need help fast.

[liam]

Does it happen when you restart the container?
If that’s the case you likely don’t have your docker volumes setup correctly

Please share details of configuration

[joaolima]

Hey liam, Thanks for your attention!
If I run a docker compose down and then up, everything starts normally.
But at some point it tries to run the migrations again and completely breaks everything.

In my docker-compose.yml, under the n8n-worker service, I added:
deploy:
replicas: 2

But my Docker is not running in Swarm mode.
Could this be the issue?

[liam]

could you share your complete compose file? Are you using queue mode?

[joaolima]

n8n-editor:
image: n8nio/n8n:latest
container_name: n8n-editor
mem_limit: 1g
cpus: 0.5
volumes:

• ./n8n-data:/home/node/.n8n
  ports:
• xxxx:xxxx
  depends_on:
• postgres-n8n
• redis
  networks:
• n8n-queue
  restart:
  always
  environment:
  N8N_ALLOW_ORIGIN: ‘*’
  N8N_EDITOR_BASE_URL: x
  WEBHOOK_URL: x
  DB_TYPE: postgresdb
  DB_POSTGRESDB_HOST: x
  DB_POSTGRESDB_PORT: xxxx
  DB_POSTGRESDB_DATABASE: x
  DB_POSTGRESDB_USER: x
  DB_POSTGRESDB_PASSWORD: x
  QUEUE_BULL_REDIS_HOST: x
  QUEUE_BULL_REDIS_PORT: x
  N8N_RUNNERS_ENABLED: true
  N8N_ENFORCE_SETTINGS_FILE_PERMISSIONS: true
  EXECUTIONS_MODE: queue
  GENERIC_TIMEZONE: America/Sao_Paulo
  N8N_COMMUNITY_PACKAGES_ALLOW: true
  N8N_DEFAULT_BINARY_DATA_MODE: filesystem
  OFFLOAD_MANUAL_EXECUTIONS_TO_WORKERS: true
  N8N_TRUST_PROXY: true
  N8N_API_RATE_LIMIT: false
  N8N_PROXY_HOPS: “1”
  N8N_PUSH_BACKEND: “websocket”

[joaolima]

And yes, we are using queue mode.

[liam]

Can you share the compose for the workers too?

When you say it starts normally, you mean the workflows are there when it first restarts but then disappear?
Are you able to check the logs when this happens? Change the log level if needed

[joaolima]

n8n-workers:

image: n8nio/n8n:latest

mem_limit: 1.5g

cpus: 0.7

volumes:

  - ./n8n-data:/home/node/.n8n

depends_on:

  - postgres-n8n

  - redis

networks:

  - n8n-queue

restart: always

environment:

  N8N_ALLOW_ORIGIN: '\*'

  N8N_EDITOR_BASE_URL: x

  WEBHOOK_URL: x

  DB_TYPE: postgresdb

  DB_POSTGRESDB_HOST: x

  DB_POSTGRESDB_PORT: x

  DB_POSTGRESDB_DATABASE: x

  DB_POSTGRESDB_USER: x

  DB_POSTGRESDB_PASSWORD: x

  QUEUE_BULL_REDIS_HOST: x

  QUEUE_BULL_REDIS_PORT: x

  N8N_RUNNERS_ENABLED: true

  N8N_ENFORCE_SETTINGS_FILE_PERMISSIONS: true

  EXECUTIONS_MODE: queue

  GENERIC_TIMEZONE: America/Sao_Paulo

  N8N_COMMUNITY_PACKAGES_ALLOW: true

  N8N_DEFAULT_BINARY_DATA_MODE: filesystem

  OFFLOAD_MANUAL_EXECUTIONS_TO_WORKERS: true

  N8N_TRUST_PROXY: true

  N8N_API_RATE_LIMIT: false

  N8N_PROXY_HOPS: "1"

  N8N_PUSH_BACKEND: "websocket"

command: worker

There’s a moment when n8n runs migrations, and as a result it deletes tables/resets the database. Because of that, I have to delete the database and rebuild the n8n-editor service.

Logs:

n8n-editor | Migrations in progress, please do NOT stop the process.

n8n-editor | Starting migration InitialMigration1587669153312

n8n-editor | Finished migration InitialMigration1587669153312

n8n-editor | Starting migration WebhookModel1589476000887

n8n-editor | Finished migration WebhookModel1589476000887

n8n-editor | Starting migration CreateIndexStoppedAt1594828256133

n8n-editor | Finished migration CreateIndexStoppedAt1594828256133

n8n-editor | Starting migration MakeStoppedAtNullable1607431743768

n8n-editor | Finished migration MakeStoppedAtNullable1607431743768

n8n-editor | Starting migration AddWebhookId1611144599516

n8n-editor | Finished migration AddWebhookId1611144599516

n8n-editor | Starting migration CreateTagEntity1617270242566

n8n-editor | Migration “CreateTagEntity1617270242566” failed, error: foreign key constraint “FK_31140eb41f019805b40d0087449” cannot be implemented

n8n-editor | There was an error running database migrations

n8n-editor | foreign key constraint “FK_31140eb41f019805b40d0087449” cannot be implemented

[joaolima]

Just to emphasize we use this:
deploy:
replicas: 2

[joaolima]

@liam Any idea what might be causing this problem?

[Victorcassiano]

I removed it from docker-compose.yml

deploy:
replicas: 2

Even after removing the replicas, I used the command:

docker-compose up -d --scale worker=2

To have 2 workers with 10 concurrency, But the error still occurred, but this time it was different because it occurred after 2 days.

Maybe it’s the number of concurrency per worker? Maybe it’s the number of workers?

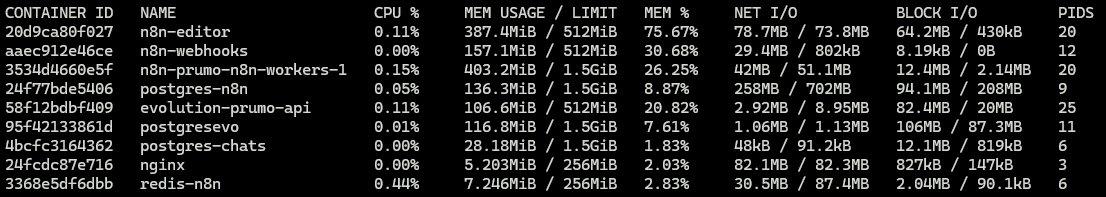

Docker stats:
