Community Node missing chevron or arrow (>). AKA quick action expander

Describe the problem/error/question

I’m looking for any information for n8n on:

  • The chevron or arrow (>) that shows up beside a node.
    -Sometimes it’s called a quick action expander.

I’m creating a community node for SmartSuite.

What is the error message (if any)?

Just can not get the arrow to appear!

Please share your workflow

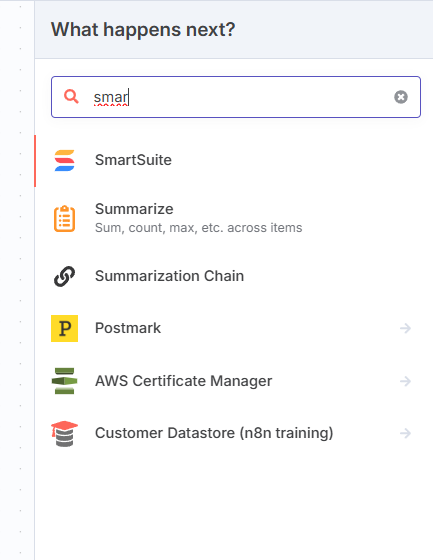

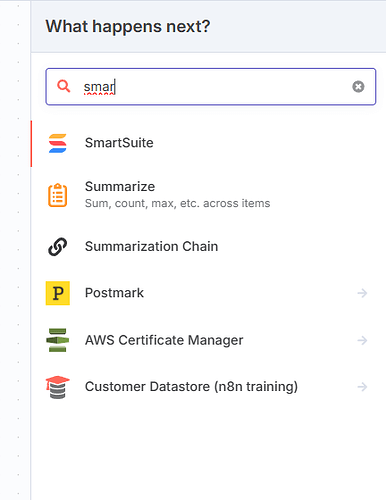

This is what happens with Airtable:

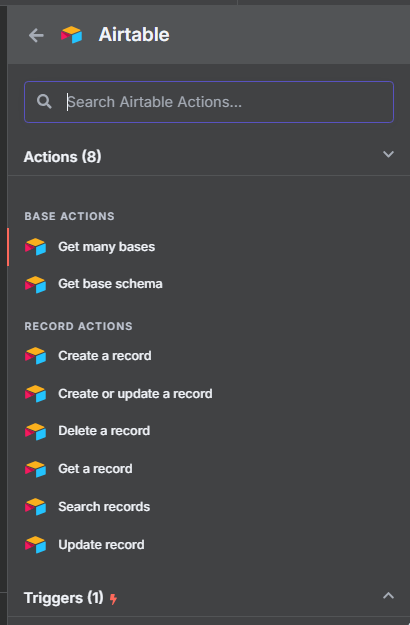

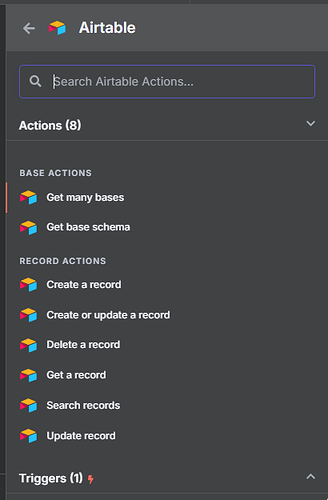

and then I should get this:

With N8N_LOG_LEVEL=debug I see the following:
What stands out is this line:
debug No codex available for: smartSuite { “file”: “directory-loader.js”, “function”: “addCodex” }

15:24:46.581   info    Initializing n8n process { "file": "start.js", "function": "init" }
15:24:46.695   debug   Lazy-loading nodes and credentials from n8n-nodes-base { "nodes": 481, "credentials": 384, "file": "lazy-package-directory-loader.js", "function": "loadAll" }
15:24:46.710   debug   Lazy-loading nodes and credentials from @n8n/n8n-nodes-langchain { "nodes": 93, "credentials": 21, "file": "lazy-package-directory-loader.js", "function": "loadAll" }
15:24:47.259   debug   No codex available for: smartSuite { "file": "directory-loader.js", "function": "addCodex" }
15:24:47.563   info    n8n ready on ::, port 5678 { "file": "abstract-server.js", "function": "init" }
15:24:47.594   info    n8n Task Broker ready on 127.0.0.1, port 5679 { "file": "task-broker-server.js", "function": "setupHttpServer" }

I have the following in my SmartSuite.node.json file:

{
  "node": "smartSuite",
  "nodeVersion": "2",
  "codexVersion": "1.0",
  "categories": ["Productivity"],
  "resources": {
    "documentation": "https://developers.smartsuite.com/docs/intro"
  },
  "actions": [
    /* ─── SOLUTION ───────────────────────── */
    { "displayName": "List Solutions", "name": "listSolution", "resource": "solution" },
    { "displayName": "Get Solution",   "name": "getSolution",  "resource": "solution" },

    /* ─── TABLE ──────────────────────────── */
    { "displayName": "Create Table",      "name": "createTable",      "resource": "table" },
    { "displayName": "Create Table Field","name": "createTableField", "resource": "table" },
    { "displayName": "Get Table",         "name": "getTable",         "resource": "table" },
    { "displayName": "List Tables",       "name": "listTable",        "resource": "table" },

    /* ─── RECORD ─────────────────────────── */
    { "displayName": "Create Record",  "name": "createRecord",  "resource": "record" },
    { "displayName": "List Records",   "name": "listRecord",    "resource": "record" },
    { "displayName": "Search Records", "name": "searchRecord",  "resource": "record" },
    { "displayName": "Get Record",     "name": "getRecord",     "resource": "record" },
    { "displayName": "Update Record",  "name": "updateRecord",  "resource": "record" },
    { "displayName": "Delete Record",  "name": "deleteRecord",  "resource": "record" },

    /* ─── ORG MANAGEMENT ───────────────── */
    { "displayName": "Get Current User", "name": "getCurrentUser", "resource": "orgManagement" },
    { "displayName": "List Members",     "name": "listMembers",    "resource": "orgManagement" },
    { "displayName": "List Teams",       "name": "listTeams",      "resource": "orgManagement" }
  ]
}

Here is my export for the main SmartSuite.node.ts file:

export class SmartSuite implements INodeType {
  // @ts-ignore: supportsContinueOnFail is recognized by the linter
  description: INodeTypeDescription & { supportsContinueOnFail?: boolean } = {
    displayName: 'SmartSuite',
    name: 'smartSuite',
    icon: 'file:SmartSuite.svg',
    group: ['transform'],
    version: 2,
    supportsContinueOnFail: true,
    subtitle: '={{$parameter["resource"] + ": " + $parameter["operation"]}}',
    description: 'Perform CRUD operations on SmartSuite resources',
    defaults: { name: 'SmartSuite' },
    inputs: ['main'],
    outputs: ['main'],
    credentials: [

And they are in the same directory:

2025-06-12  03:24 PM    <DIR>          helpers
2025-06-12  03:24 PM    <DIR>          methods
2025-06-12  03:24 PM             1,753 router.js
2025-06-12  03:24 PM             3,135 SmartSuite.node.js
2025-06-12  03:24 PM             2,037 SmartSuite.node.json
2025-06-12  03:24 PM               760 SmartSuite.svg
2025-06-12  03:24 PM    <DIR>          transport
2025-06-12  03:24 PM                79 types.js
2025-06-12  03:24 PM             4,383 versionDescription.js

Information on your n8n setup

  • n8n version: V1.98.0
  • Database (default: SQLite): SQlite
  • n8n EXECUTIONS_PROCESS setting (default: own, main): no
  • **Running n8n via (Docker, npm, n8n cloud, desktop app):**no
  • Operating system: Windows 11

I just can’t find a way to make my Chevron (arrow >) show up (or the quick action expander)

Any help would be appreciated

Remove the actions from the json file and assuming you are using the starter template we provide you just need to make sure you have actions on your operations.

Hi Jon,

We used Airtable as our starting point, not the starter template.

Every time we try to put the action on our operations it breaks all our UX and code that is all working. And we have tried multiple times and ways.

The *.node.json seem a lot quicker and easier way to get the quick action to appear.

Is there any additional information on how to get that to work to show the quick action chevron (>)?
