Evolution Api-n8n-coolify- webhook works with test URL but fails to receive data with production URL

Mohd_Zuhaili_Mohd · July 8, 2025, 11:52am

Working Scenario (Test Environment):

Using test URL: https://mydomain/webhook-test/dagdagafhaehahadfhadfhadf
When someone sends WhatsApp message to my number
Evolution API successfully sends upsert data to n8n webhook

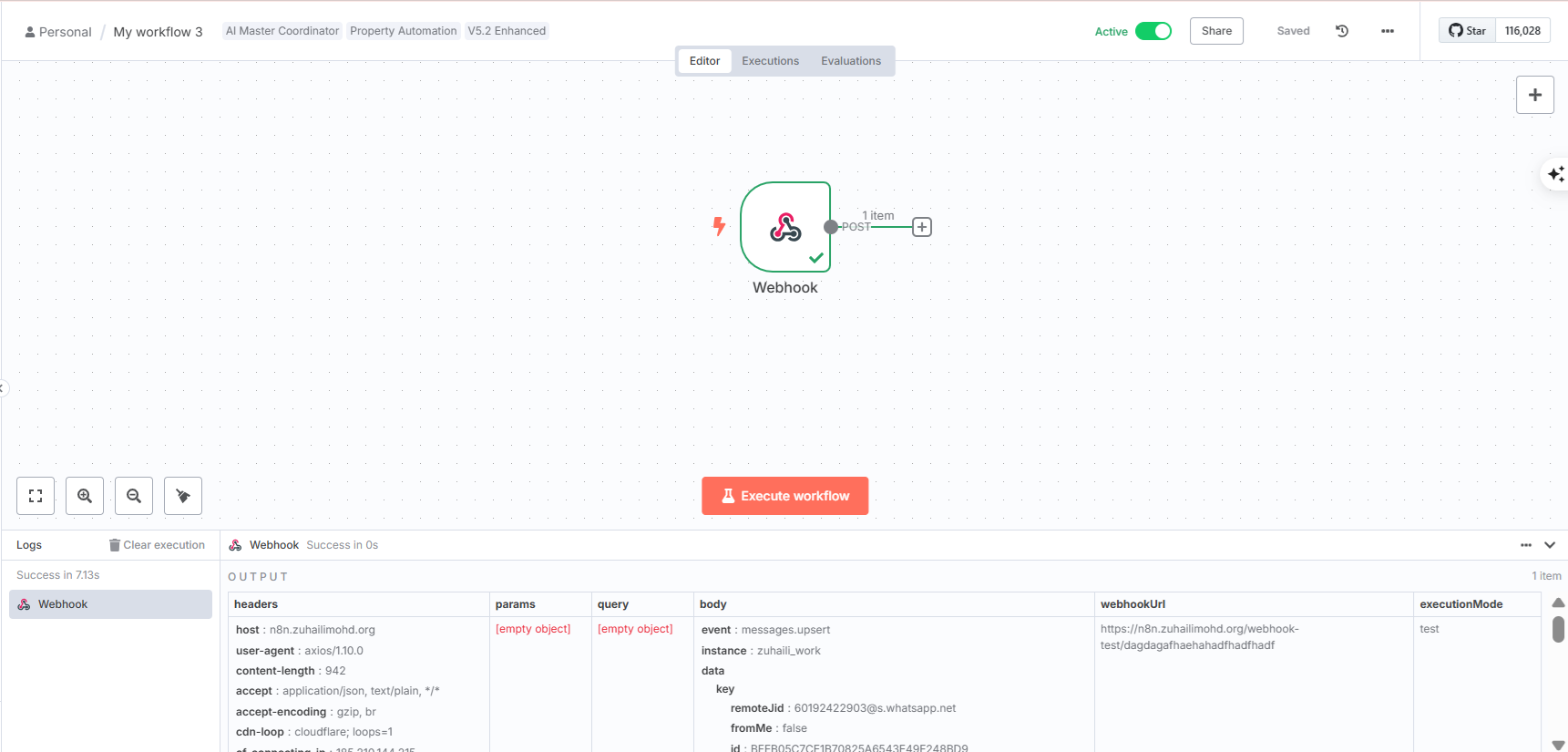

I can see the WhatsApp message data in n8n webhook output

Not Working Scenario (Production Environment):

Using production URL: https://mydomain/webhook/dagdagafhaehahadfhadfhadf
When someone sends WhatsApp message to my number
Evolution API attempts to send upsert data to production URL
n8n webhook is NOT triggered - no WhatsApp message data received
No execution logs show incoming webhook calls in n8n workflow

Infrastructure Setup:

Hosting: VPS Hostinger
Reverse Proxy: Cloudflare (proxied/orange cloud)
Container Management: Coolify
Evolution API version: evolution-api:v2.3.0
WhatsApp instance status: Connected
Webhook events enabled: messages.upsert

What Works:
Production URL accessible from browser (200 OK)
Manual webhook test in n8n works
SSL certificate valid
Same Evolution API instance for both test and production
Same n8n workflow configuration

What Doesn’t Work:
WhatsApp message upsert data not reaching production webhook
No webhook execution triggered when WhatsApp messages received
No incoming requests in server logs from Evolution API

Root Issue:
Evolution API can successfully deliver WhatsApp upsert data to external test URLs (webhook.site) but cannot deliver the same data to my production url. This suggests the production URL is not accessible from Evolution API servers or being blocked by Cloudflare security settings.

Expected Behavior:
When someone sends a WhatsApp message to my number, Evolution API should POST the message upsert data to my production webhook URL, triggering the n8n workflow.

TjM · July 8, 2025, 12:20pm

hi @Mohd_Zuhaili_Mohd the Evolution docs state that the event must be MESSAGES_UPSERT and not messages.upsert. have you tried that already?

Heres a link to the docs Webhooks - Evolution API Documentation

Mohd_Zuhaili_Mohd · July 9, 2025, 1:15am

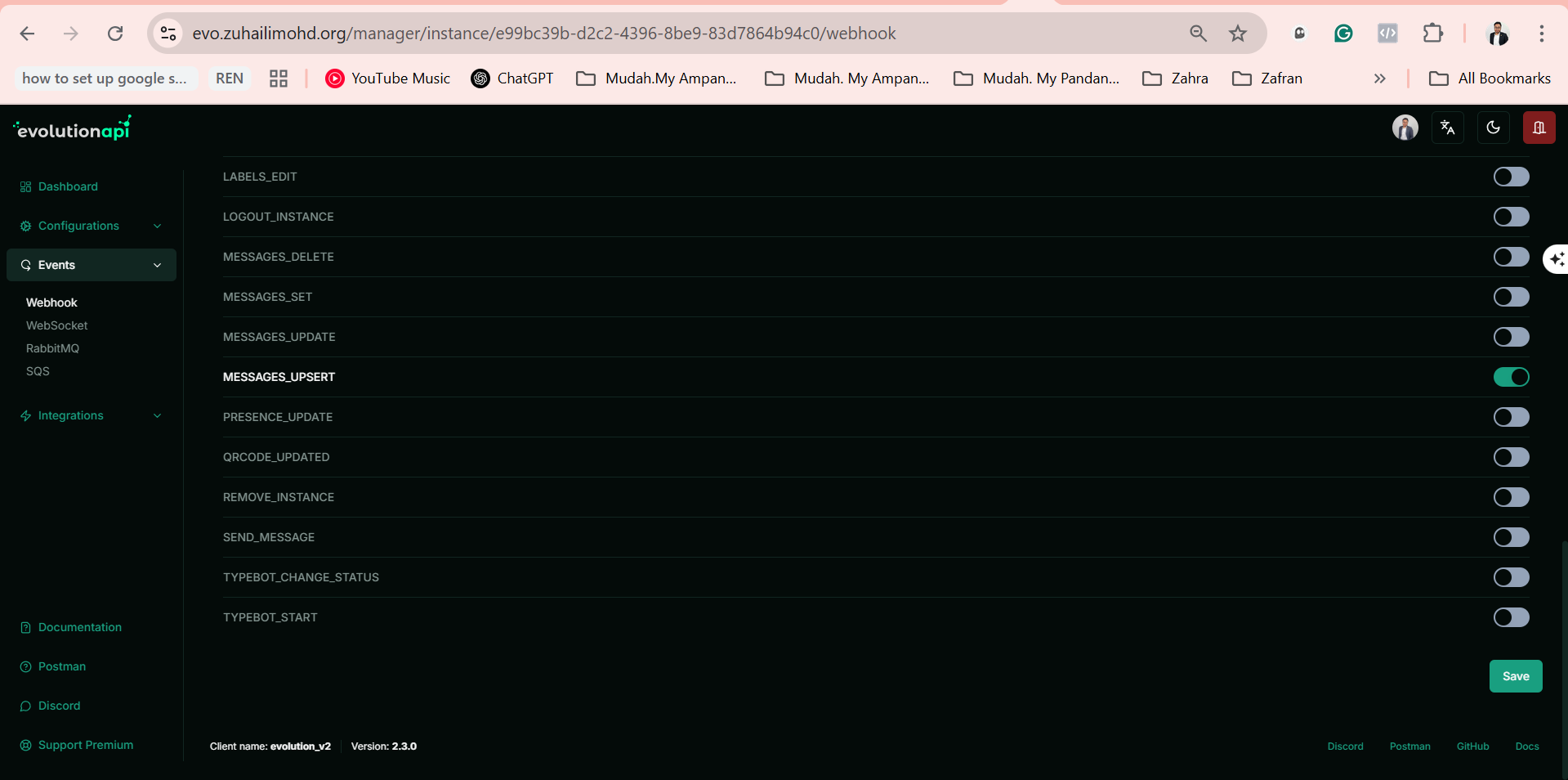

Yes, I already clicked the messages_upsert button. I just discovered that my Telegram trigger in another workflow has the same issue. When I’m using the test URL, n8n can pick up the data and trigger the workflow successfully. But when I activate the workflow and try using the production URL, the Telegram trigger cannot be used to activate my workflow, even though I have already sent the message to trigger the workflow through Telegram.

TjM · July 9, 2025, 4:45am

I see… if thats the case, it could be having an issue with production URL. Could it be that cloudfare is blocking the connection. You can try to disable cloudfare and try it, if that works then go to cloudfare firewall and alllow all IP from telegram.

TjM · July 9, 2025, 4:55am

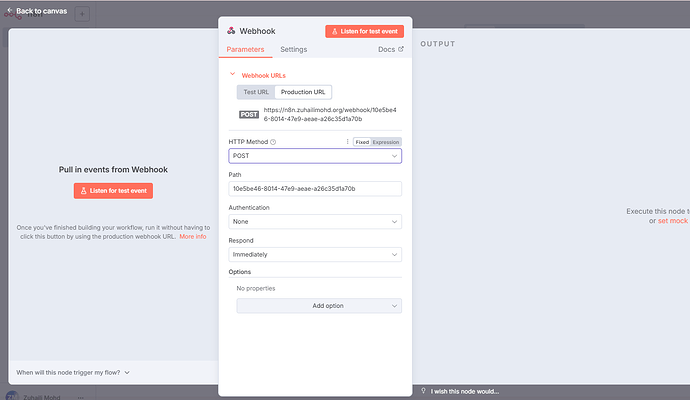

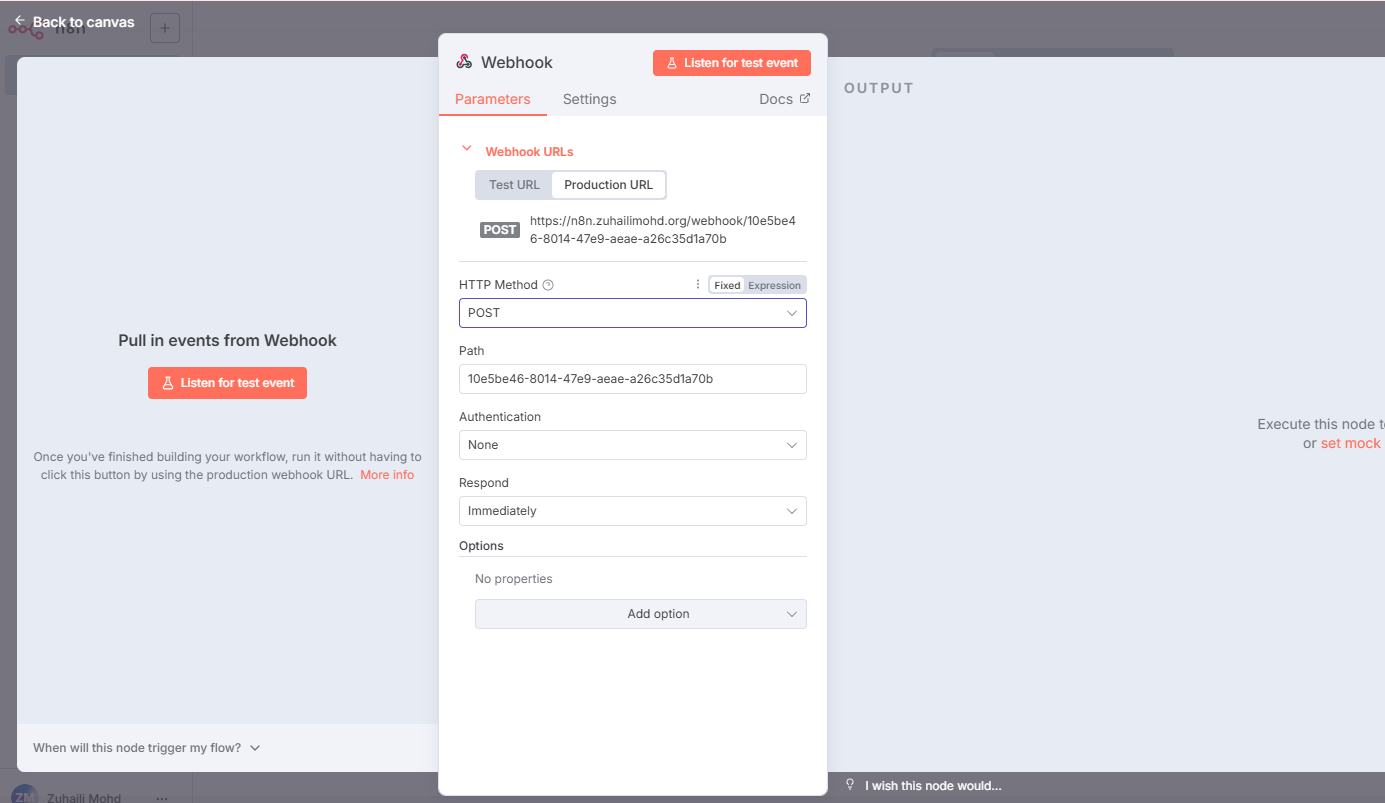

could you also send of a photo of the PArameters of your webhook? myabe the path is the problem

cutecatcode · July 9, 2025, 5:19am

Did you try to set the webhook from Meta API Dashboard?

Mohd_Zuhaili_Mohd · July 9, 2025, 7:43am

"I have tried to disable the Cloudflare firewall and run the workflow, but it is still the same. The workflow is running when using the test URL, but not in production.

Mohd_Zuhaili_Mohd · July 9, 2025, 7:45am

I’m using Evolution API, not WhatsApp official, to call the webhook.

Mohd_Zuhaili_Mohd · July 9, 2025, 7:47am

cutecatcode · July 9, 2025, 10:00am

Have you set the webhook URL from the related API Provider?

Mohd_Zuhaili_Mohd · July 10, 2025, 4:39am

Yes, I have.

Mohd_Zuhaili_Mohd · July 11, 2025, 12:34am

im self-hosting behind a proxy(cloudflare) Need to engage the variables WEBHOOK_URL and N8N_PROXY_HOPS (see [Environment Variables Overview | n8n Docs]
(Environment Variables Overview | n8n Docs)).
