Describe the problem/error/question

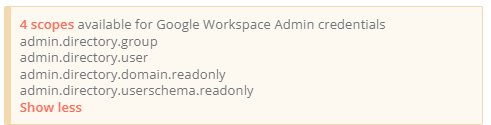

When I create an HTTP REQUEST using the predefined authentication of Google Workspace Admin OAuth2 API, shortly after, a box appears informing me about 4 available scopes.

It turns out that none of the listed scopes is what I need for my action. Even after enabling the scope in my application on Google Cloud, the list doesn’t change, and I can’t complete my request.

What is the error message (if any)?

Not a error:

Please share your workflow

Share the output returned by the last node

Forbidden - perhaps check your credentials?

{ "error": { "code": 403, "message": "Request had insufficient authentication scopes.", "errors": [ { "message": "Insufficient Permission", "domain": "global", "reason": "insufficientPermissions" } ], "status": "PERMISSION_DENIED", "details": [ { "@type": "type.googleapis.com/google.rpc.ErrorInfo", "reason": "ACCESS_TOKEN_SCOPE_INSUFFICIENT", "domain": "googleapis.com", "metadata": { "service": "admin.googleapis.com", "method": "ccc.hosted.frontend.directory.v1.DirectoryVerificationCodes.List" } } ] } }

Information on your n8n setup

• n8n version: Version 1.36.4
• Database (default: SQLite):
• n8n EXECUTIONS_PROCESS setting (default: own, main):
• Running n8n via (Docker, npm, n8n cloud, desktop app): N8N Cloud
• Operating system:

[barn4k]

hello @n8ndot
You should checks for the required scopes from the google API page, not from n8n as the information may be old.

For that action, you need the admin.directory.user.security scope

[n8ndot]

@barn4k thanks for you reply,

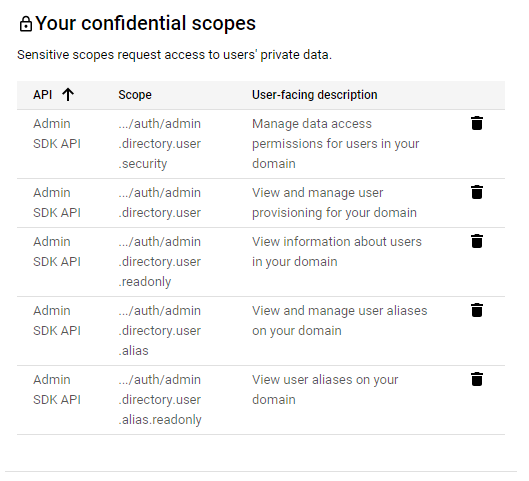

If I go to my Google Cloud application, on the OAuth permissions screen, in the scope section, I already have the scope enabled, shouldn’t that be enough for the workflow to work?

[barn4k]

Actually, yes, it should be fine. Do you have any audit logs related to the issue with permissions?

And check how the request looks in the dev console (f12 > console tab) when you are running the HTTP node. Maybe you will see the scopes).

Another issue may occur if n8n tries to send the request with the wrong scope, e.g. with admin.directory.user instead of admin.directory.user.security

[barn4k]

Seems the n8n uses default scopes when connects to the workspace resources.

I’ve found the scope list and there are no user.security scope there - n8n/packages/nodes-base/credentials/GSuiteAdminOAuth2Api.credentials.ts at d9e74949c4db7282c3ab42bd6825aa5acc042400 · n8n-io/n8n · GitHub

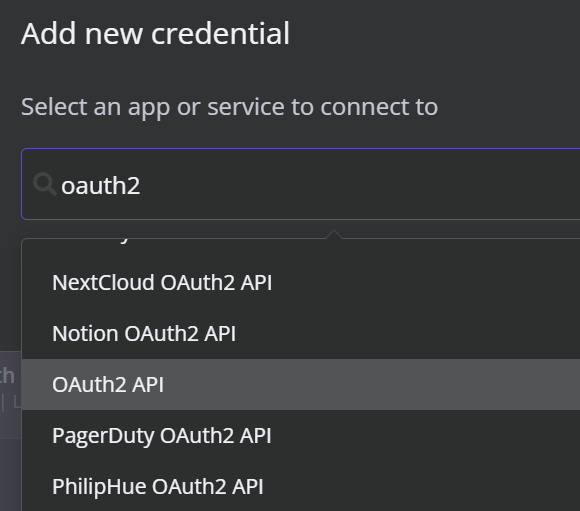

So you can use the generic OAuth 2.0 credentials to specify the correct scope there.

@Jon Am I missing something?

[n8ndot]

I thought about it, but I couldn’t set it up correctly, so I didn’t test it earlier.

The documentation is not clear, and I would like to ask a silly question, where do I find the authorization URL and access token URL information?

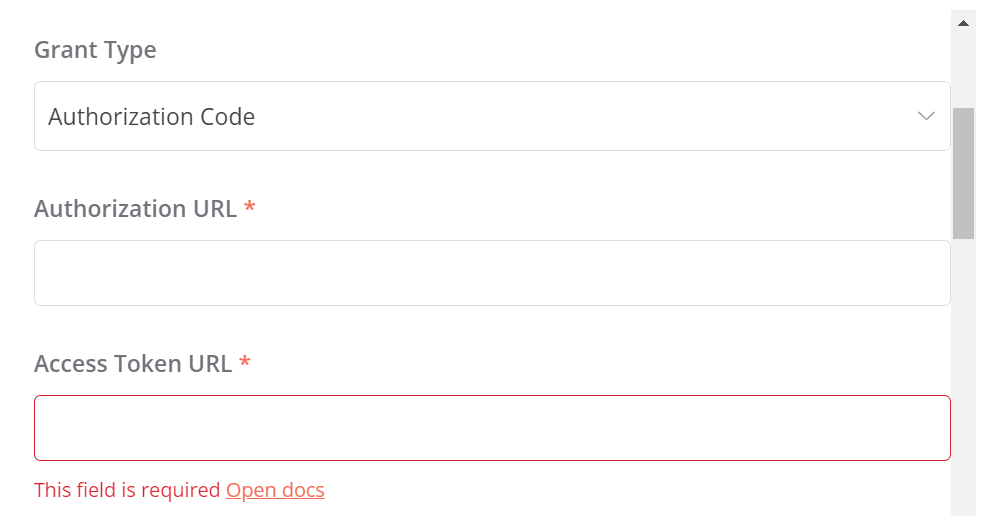

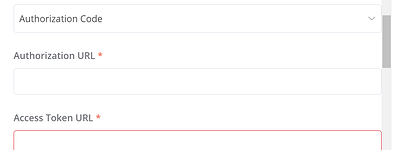

Is the Grant Type correctly?

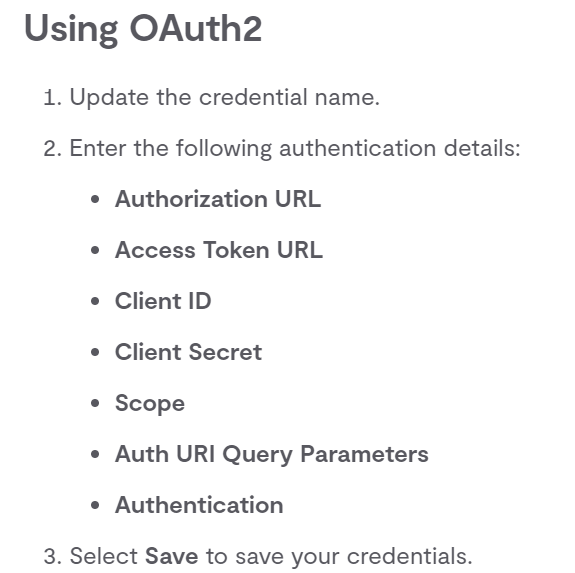

What the doc says:

Thank you for your time.

[barn4k]

Authorization url should be that one:
https://accounts.google.com/o/oauth2/v2/auth

Access token url:
https://oauth2.googleapis.com/token

Scope:
https://www.googleapis.com/auth/admin.directory.user.security

I’ve found it in the docs
