How to configure n8n to run in a subpath?

[hao-z-zheng]

I cloned the source code (master branch) from GitHub and ran pnpm install and pnpm build. When I run n8n at http://localhost:5678 with pnpm start , it successfully accesses it.
Now, I want to run it locally at the http://localhost:5678/my_n8n subdirectory, but I’m not sure how to change it. I saw the documentation mentioning N8N_PATH: The path n8n deploys to.

Deployment environment variables | n8n Docs

I didn’t use docker because my development environment doesn’t allow me to use docker, so I just cloned the source code and then ran it locally using
pnpm install
pnpm build
pnpm start**

But I don’t understand what file I should modify.**
Could someone please tell me which configuration file I should modify?

I’ve tried setting the environment variables like this and then running pnpm start again to start the project：

then,show the info :Editor is now accessible via: http://localhost:5678/my_n8n

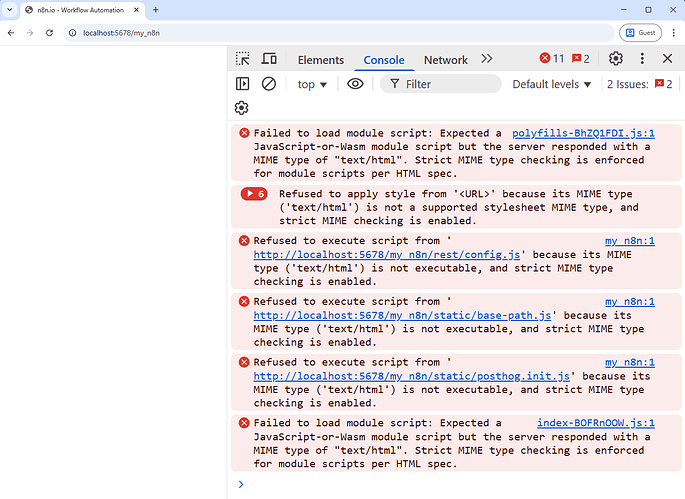

But when I open this address, the page is blank and the console reports an error:

It seems that the static files path cannot be loaded

Information on your n8n setup

• n8n version: 1.108.0 master branch
• Database (default: SQLite):
• n8n EXECUTIONS_PROCESS setting (default: own, main):
• Running n8n via (Docker, npm, n8n cloud, desktop app):pnpm start
• Operating system:windows

[hao-z-zheng]

I think this is a scenario that many people will need to use. Has anyone successfully done this configuration?

[barn4k]

hello @hao-z-zheng

Try to set the path with $env:N8N_PATH="/my_n8n"

[BramKn]

@Jon Mentioned on Discord that this feature might be removed in v2. So please keep that in mind.

Also I don’t see how this feature is something “many people will need to use“.

[hao-z-zheng]

The n8n team really needs to consider organizing someone to answer user questions. No one officially responds to such a basic question, but I figured it out myself through research and am sharing my solution in the hope it helps others.

I’m currently using n8n release/1.109.0.

Also, I saw the n8n team say they’ll consider deprecating the N8N_PATH configuration option in version 2, but it’s essential.

I hope the official n8n team will provide more detailed documentation for version 2.

I’m currently using version 1.109. Steps to Resolve for configuring sub-paths:

1. Add a .env file to the packages\cli\bin.env directory.
   .env:
   N8N_PATH=/my_n8n/
   N8N_EDITOR_BASE_URL=http:/ /www.xyz.com/my_n8n/
   N8N_DIAGNOSTICS_ENABLED=false

2. Build the project using pnpm build and then start it using pnpm start

3. Add the following configuration to the nginx server:

http {

map $http_upgrade $connection_upgrade {
default upgrade;
‘’ close;

}

server {
listen 443;
server_name www.your_server_url;

location = / { return 302 /my_n8n/; }
location = /my_n8n { return 301 /my_n8n/; }

location /my_n8n/rest/push {
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $connection_upgrade;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-Host $host;
proxy_set_header X-Forwarded-Port $server_port;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_buffering off;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
proxy_pass http:// 127.0.0.1:5678/rest/push;
}

location /my_n8n/ {
proxy_pass http:// 127.0.0.1:5678/;
proxy_http_version 1.1;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $connection_upgrade;
client_max_body_size 50m;

}

location = /my_n8n/index.html {
proxy_pass http:// 127.0.0.1:5678/;
add_header Cache-Control “no-cache, no-store, must-revalidate”;
}

location /static/ {
proxy_pass http:// 127.0.0.1:5678/static/; proxy_http_version 1.1;
proxy_set_header Host $host;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

expires 30d;
add_header Cache-Control “public, max-age=2592000”;
}
}
}

4. Then visit your www.your_server_url/my_n8n

5. The nginx proxy will help you access the n8n website running on port 5678
