How to make a chat public available in self-hosted n8n?

Questions
1

Describe the problem/error/question

I’m trying to make a chat trigger go public, but not being able to.
My n8n is self hosted in an aws ec2, and the instance is accessible through a domain, through IIS.

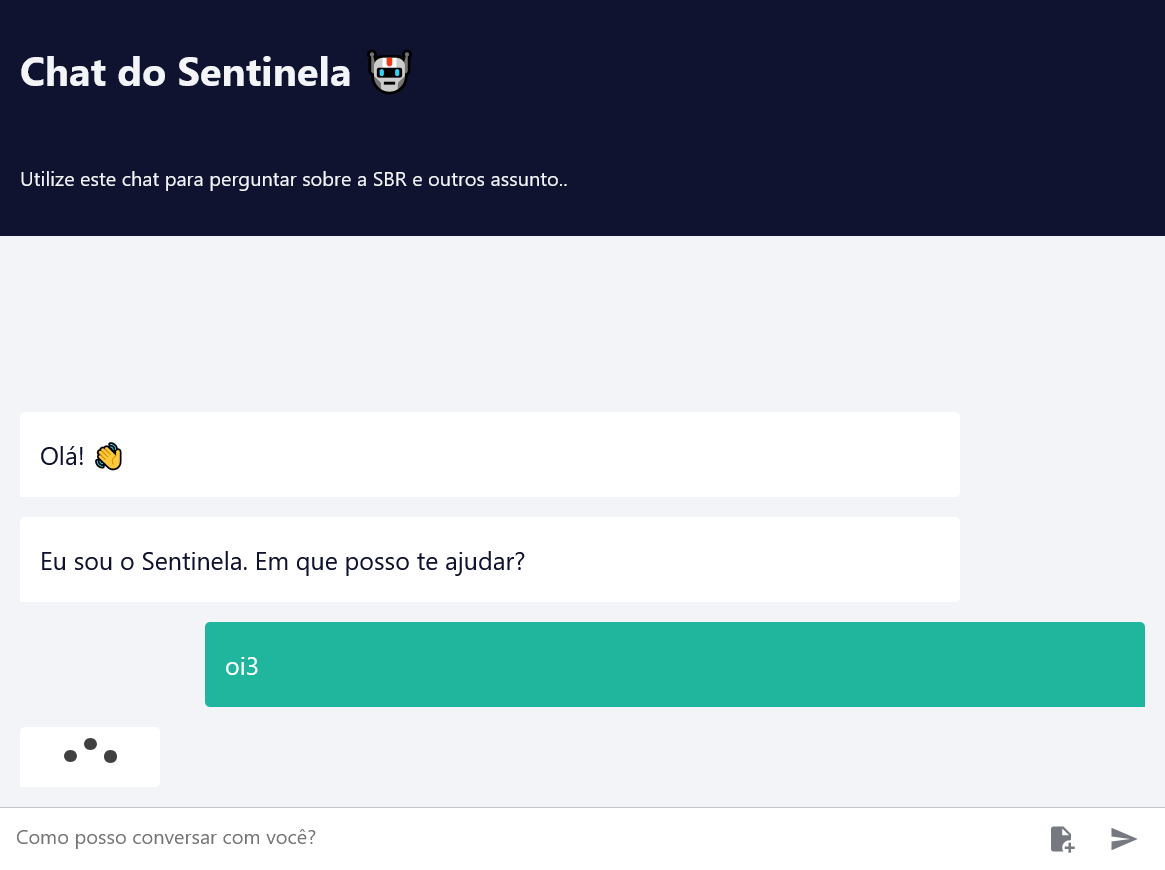

Testing it inside the n8n, it works ok. But when I access the Chat UI, public on my domain, it doesn’t respond anything, as in the image below. Also, no execution is registered.

image1165×870 19.3 KB

Please share your workflow

(Select the nodes on your canvas and use the keyboard shortcuts CMD+C/CTRL+C and CMD+V/CTRL+V to copy and paste the workflow.)

{
“nodes”: [
{
“parameters”: {
“public”: true,
“initialMessages”: “Olá! :wave:\nEu sou o Sentinela. Em que posso te ajudar?”,
“options”: {
“allowedOrigins”: “*”,
“allowFileUploads”: true,
“inputPlaceholder”: “Como posso conversar com você?”,
“responseMode”: “responseNode”,
“showWelcomeScreen”: true,
“getStarted”: “New Conversation”,
“title”: “Chat do Sentinela :robot:”
}
},
“type”: “@n8n/n8n-nodes-langchain.chatTrigger”,
“typeVersion”: 1.1,
“position”: [
60,
-20
],
“id”: “43783894-8d70-4fe3-8e16-29d9ecc64f64”,
“name”: “When chat message received”,
“webhookId”: “0c4aa4bf-dc3c-47ad-a153-40ec8f6df58d”
}
],
“connections”: {
“When chat message received”: {
“main”: [

]
}
},
“pinData”: {},
“meta”: {
“instanceId”: “bbb362b7a4d6347f35ff045b97a71b7301e96c863f3a314e3653479049c01ed1”
}
}

Information on your n8n setup

  • n8n version: 1.78.1
  • Database (default: SQLite): SQLite
  • n8n EXECUTIONS_PROCESS setting (default: own, main): ?
  • Running n8n via (Docker, npm, n8n cloud, desktop app): npm (self-hosted)
  • Operating system: Windows Server 2019

What am I missing here?
Appreciate any help given.

Gabriel

2

Did you activate the workflow?
It might be as simple as that :sweat_smile:

By the way, I’d recommend to update to version 1.80.5 or higher. Some important bugs were fixed.
.

:point_right: If my reply answers your question, please remember to mark it as a solution.

3

Yes, It is activated!
That’s why I can access the Chat UI through my URL in any PC (example: http://n8n.mydomain.com/webhook/webhook code/chat).

I’m thinking it might be some problem related to IIS (Windows Server) or in the AWS EC2 configurations, but couldn’t find it so far…

4

Hey @Gabriel_Yuji_Nakashi,

If possible, try updating to 1.80.5 and see what you get.

5

I am getting the same problem on a self-hosted n8n docker container running on my Tailscale network.

https://thomas-nuc.tailaad228.ts.net/webhook/cdb5c076-d458-4b9d-8398-f43bd25059b1/chat

n8n version: 1.81.4

If I run using the http://localhost:5678/webhook/cdb5c076-d458-4b9d-8398-f43bd25059b1/chat then everything is working fine.

6

@Gabriel_Yuji_Nakashi @Thomas_Yung

I would advise, in a scenario like this, once on the url itself, to open chrome/browser developer tools, and investigate the console & networking panel.

Then try perform chat actions and see if there are any crazy errors. I have seen something like this happen on self hosted where the websocket was dropping connections, and I had to custom route the socket endpoint via nginx reverse proxy, and it fixed the issue.

7

Hey Thomas, did you solve the issue? And if, yes, please tell how. I am running selfhosted n8n on a render.com in order to test webhook functionality and having issue to create credentials for google mail, drive node. In “redirect url” in the node exist predifined url linked to lokal:5678 and when i reset “redirect url” to server-name:443 it does not function. Any idea what to do?

8

@2024s

Setting these values in the docker compose should help fix any wrong URLs on the n8n UI side, if you are behind a domain.

  • N8N_EDITOR_BASE_URL=https://{domain}
  • WEBHOOK_URL=https://{domain}

It may work with IP as well. Not confident.

1 Like
9

Those env variables worked for me. Thanks!

1 Like
