How to pass binary image into Microsoft Teams Bot Chat

Help me Build my Workflow
1

Hey guys, so I’m trying to reply with an image back to my teams bot chat (build with azure bot).

I just cant get this workflow to reply with this binary image. I’m successfully passing it trough the workflow to the last node.

I already have a workflow that can send messages back, that’s fine and working, just cant get the images through.

I just don’t know what the correct parameters are. Here is a Microsoft Teams Bot documentation:

1. Add media attachments to messages in Bot Framework SDK - Bot Service | Microsoft Learn

This is my workflow:

II’ve tried almost everything but it looks like I’m missing some important knowledge here. Any pro could help me please. Thank you

2

Hello, how are you?

As described in the documentation, file uploads must be done via URL.

I recommend using a file hosting service (in my projects I use minIO, which is compatible with s3).

Another point: you don’t need to make an HTTP request to obtain the bot token and then send messages.

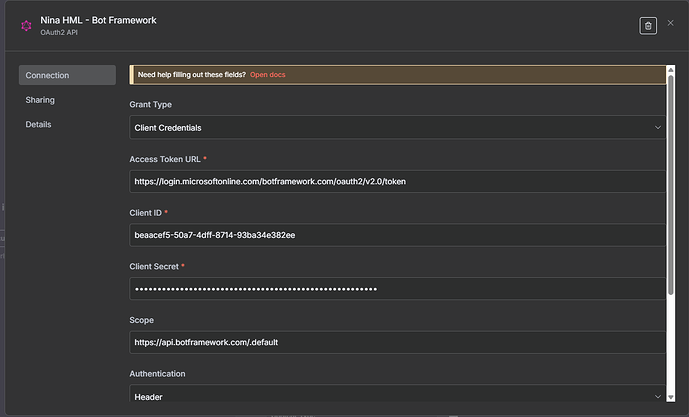

You can create a generic OAuth2 credential; this makes the workflow cleaner.

image1209×731 35.3 KB

If my answer helped you, mark it as the solution. I’m happy to help.

1 Like
3

Hey @gabrielhmsantos

it worked, thank you soooo sooo much :sob: I’ve been struggling with this for several days. :heart: :heart: :heart:

I see no option to mark you answer as "Solution”
