How to setup SAML Roles with Azure (n8n_instance_role)

chrispward · February 3, 2026, 3:35pm

Describe the problem/error/question

We have SAML configured with Azure. Auth is just fine.
We have AD groups in SAML that match the user types (owner/admin/member/chatUser).
We cant figure out how to map those AD groups to the n8n_instance_role as described in the doc.

Unfortunaly, there is only detailed docs for Okta and we’ve tried to figure out the same concept in Azure but after several attempts, still no luck.

Has anyone been successful setting up the n8n_instance_role and if so, how did you set it up on Azure?

(be good to publish that info in the n8n docs site as well)

TX

tamy.santos · February 3, 2026, 5:24pm

Hi @chrispward

Welcome back!

I’ve been through exactly this confusion before, so I totally understand the scenario. Azure works fine, but n8n is much more restrictive than it appears at first glance, and this is usually the sticking point.
Even if you have groups in AD like owner / admin / member / chatUser, n8n doesn’t understand all those roles via SAML.

What n8n Actually Accepts: global:admin or global:member

In n8n, Verify That

SAML SSO is enabled and User role provisioning is turned on in Settings → SSO → SAML; Without this, n8n completely ignores any role coming from the IdP.

In Azure, You Need To

Create a SAML claim named exactly n8n_instance_role and Set the value based on AD group membership; The critical point: The claim name and value need to be exactly these. Any variation (admin, member, OWNER, etc.) will be ignored by n8n.

Practical Tip

Before testing in n8n, inspect the SAML response from Azure using a SAML tracer/viewer and confirm:

The claim n8n_instance_role is present
The value is exactly global:admin or global:member
It’s not coming as an array or with multiple values

If this is correct, the role will be applied on login without any issues.

chrispward · February 3, 2026, 6:04pm

Thanks.

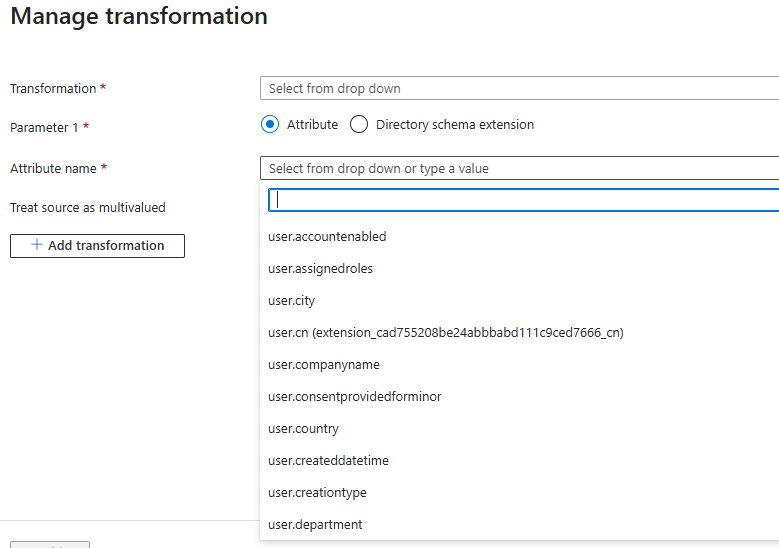

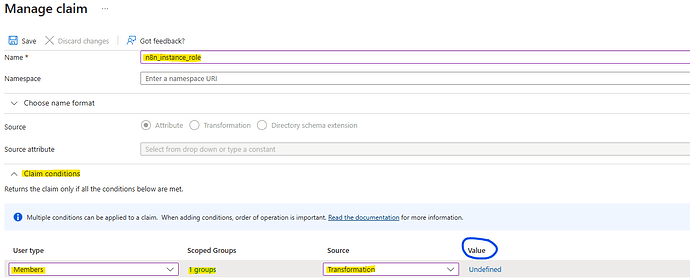

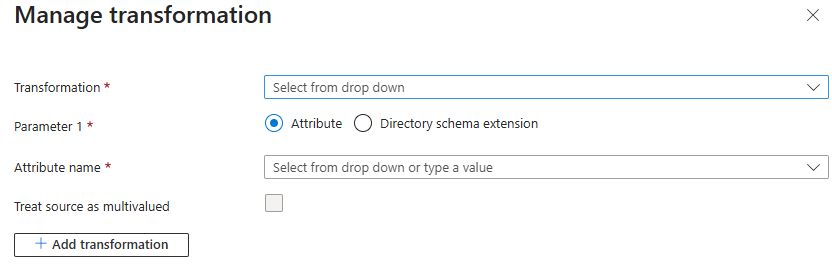

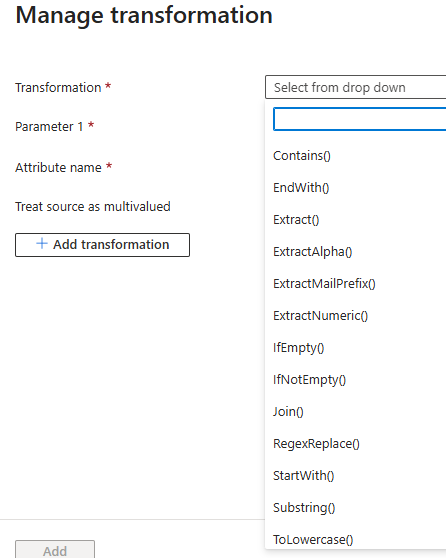

So when we go to add the claim, and add the value, were getting a ‘manage transformation’ screen and we dont know what settings to use for this screen. Then there is attribute list and the ad groups arnt in there… basically this is the step we stuck on. any help describing what you do here would be great. (i’ll upload the screen shots]

tamy.santos · February 3, 2026, 6:20pm

@chrispward

Here are the configurations you need to follow in Azure:

In Manage claim, set Name to n8n_instance_role, leave Namespace blank, and don’t select anything for Choose name format.

Under Claim conditions, set User type to Members, then in Scoped Groups select your AD group. For Source, choose Value (not transformation), and set Value to global:admin.

For members, you’ll need to create another claim or condition and just swap out the AD group in the Scoped Groups field, keeping everything else the same but changing the value to global:member.

When you inspect the SAML response, you should see something like this:
xml

<Attribute Name="n8n_instance_role">
  <AttributeValue>global:admin</AttributeValue>
</Attribute>

If it appears exactly like that, n8n will apply the role on login. Also, ignore the Manage transformation section completely—you don’t need it.

That should get the role mapping working properly. Let me know if you run into any issues!

chrispward · February 6, 2026, 5:53pm

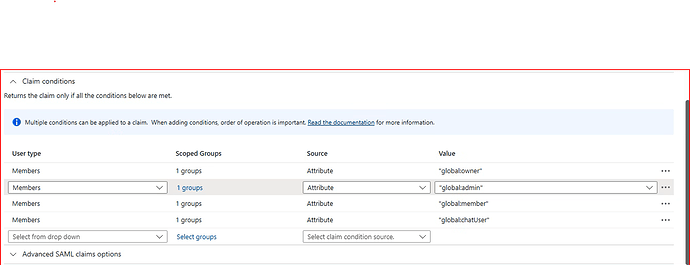

I think were almost there. I see the attriubute appear in the saml now.. however the order seems wrong. I happen to be in 2 groups and even though we did top down, it seems to match to admin each time rather than owner. What we doing wrong? see screenshot of the claim
