Json expression to specify data from body

[mr.dipp]

Hey team,

i’m giving N8N another try…, I noticed this has been asked ( and probalby solved a few times in the forums. ). But I still can’t see to get the right json expression.

I’m receiving some json ( by webhook ).
The json seems valid, atleast the json lint website says it is.

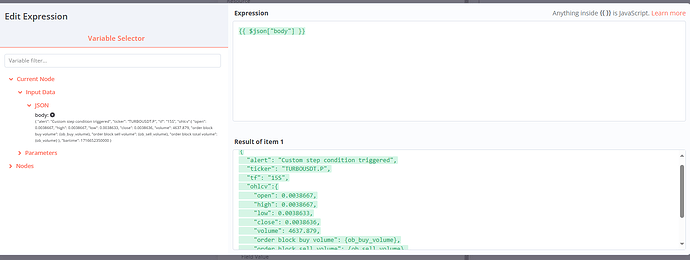

When I set the json command : {{ $json[“body”] }}

It give the information of the complete body.
But how can I filter this to just get for example ticker, or tf.

Thank you in advance,

Jack

Information on your n8n setup

• **n8n version:latest stable
• **Database (default: SQLite):default
• **n8n EXECUTIONS_PROCESS setting (default: own, main):default
• **Running n8n via (Docker, npm, n8n cloud, desktop app):docker
• **Operating system:ubuntu 22.04

[ihortom]

@mr.dipp , there are two expression types you could use to achieve this

1. Bracket notation: {{ $json["body"]["ticker"] }}
2. Dot notation: {{ $json.body.ticker }}

[mr.dipp]

@ihortom

{{ $json[“body”][“ticker”] }}

Hey, thank you for the reply.
I found these examples also in the documentation.

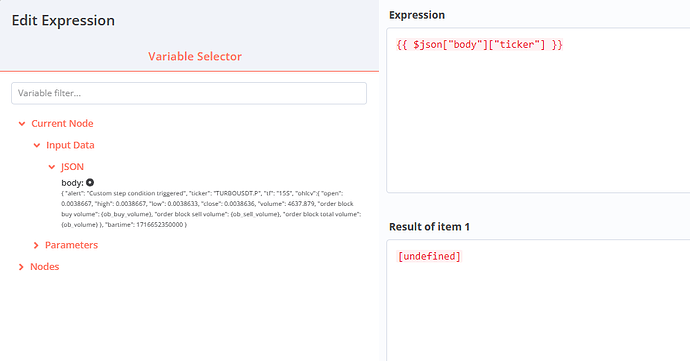

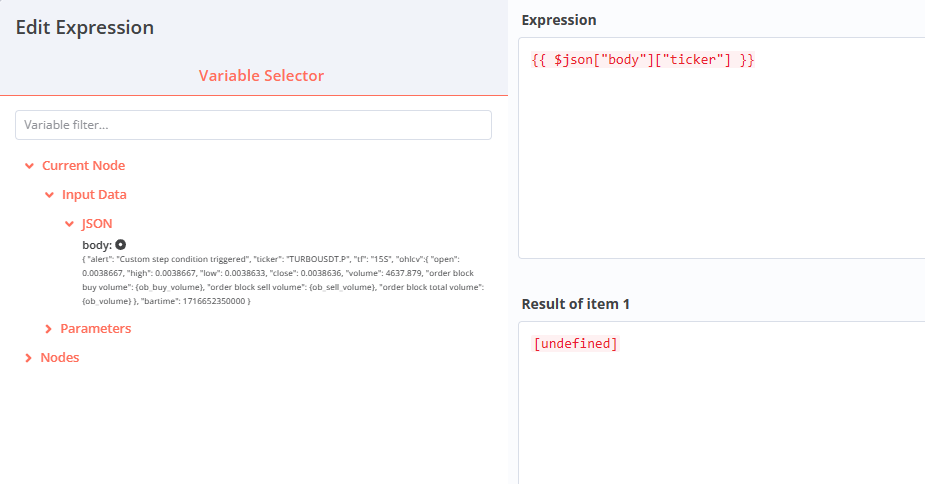

However on both I get an :

Result undefined.

So i’m missing something…

[mr.dipp]

This is the ‘complete’ json received by the webhook.
Minus the ip information.

[

{

“headers”: {

“host”: “”,

“user-agent”: “Go-http-client/1.1”,

“content-length”: “391”,

“accept-encoding”: “gzip”,

“content-type”: “text/plain; charset=utf-8”,

“x-forwarded-for”: “”,

“x-forwarded-host”: “”,

“x-forwarded-port”: “443”,

“x-forwarded-proto”: “https”,

“x-forwarded-server”: “”,

“x-real-ip”: “”

},

“params”: {

},

“query”: {

},

“body”: “{ “alert”: “Custom step condition triggered”, “ticker”: “TURBOUSDT.P”, “tf”: “15S”, “ohlcv”:{ “open”: 0.0046815, “high”: 0.0046895, “low”: 0.0046713, “close”: 0.004672, “volume”: 24239.091, “order block buy volume”: {ob_buy_volume}, “order block sell volume”: {ob_sell_volume}, “order block total volume”: {ob_volume} }, “bartime”: 1716726300000 }”,

“webhookUrl”: “https://webhook…nu/webhook-test/blablabla”,

“executionMode”: “test”

}

]

[mr.dipp]

[ihortom]

@mr.dipp , the value of body in your screenshot is a string representation of JSON, not JSON as such. You need to convert the string to JSON first.

{{ JSON.parse($json["body"])["ticker"] }}

[mr.dipp]

Hey Ihortom,

Again thank you for your reply.
I was actually googling and reading up in n8n forms to something similiar.

But I don’t quite get the complete string… , for the json / JSON.parser.

Is the last one a seperate one. Or does it need to be combined with the earlier example(s) ?

When just entering the {{ JSON.parse($json[“body”])[“ticker”] }} , it gives the undefined again.

Is there a specific format I should use for the expression engine in n8n ? Or is it regular / common json ?

thank you ,

Dipp

[ihortom]

@mr.dipp , it has to be a regular JSON. From what I see in your screenshot, it is not actually a JSON. Are you sure that is what your webhook node receives?

{
  "alert": "Custom step condition triggered",
  "ticker": "TURBOUSDT.P",
  "tf": "15S",
  "ohlcv":{
    "open": 0.0046815,
    "high": 0.0046895,
    "low": 0.0046713,
    "close": 0.004672,
    "volume": 24239.091,
    "order block buy volume": {ob_buy_volume},     // This will break parsing
    "order block sell volume": {ob_sell_volume},   // This will break parsing
    "order block total volume": {ob_volume}        // This will break parsing
  },
  "bartime": 1716726300000
}

If that is so, you might need to use RegEx to extract specific values. Alternatively, replace the offending properties first (ob_buy_volume, ob_sell_volume, ob_volume) with valid ones and then parse the string.

For example,

[mr.dipp]

Goodmorning,

thank you this works :).

Learned a bit more about json.

Thank you for your time and support.

This one can be closed.

Cheers,

Dipp

[mr.dipp]

small update before it can be closed.

Removed the values which had no data from the alert.

And now the values are selectable direct from the expression builder.

Thanks !
