N8n “Lost connection to the server” when I click Execute

[keene]

Hi, I need help please.

I’m running n8n self-hosted using Docker. I’m accessing it via Cloudflare Tunnel and SafeLine WAF.

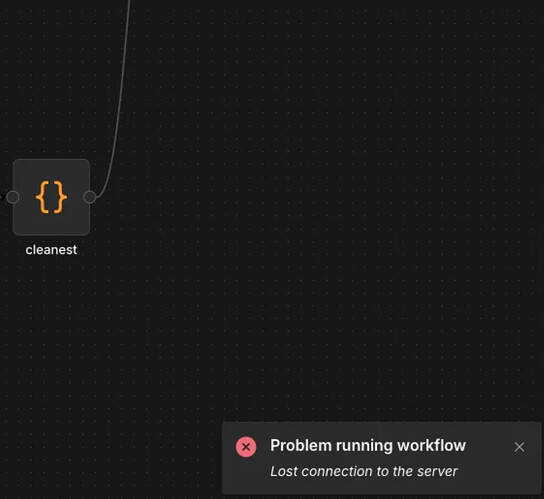

However, when I click on “Execute workflow” (manual), it is displaying “Lost connection to the server”

And in n8n logs, it is displaying “Invalid origin” and “Origin is undefined” under “rest/push”.

[Anshul_Namdev]

Hi @keene Welcome to the community!
This can happen due to a lot of reasons not specifically n8n, consider upgrading to the latest stable version of n8n and also make sure your webhook URL is working, upgrading should fix this issue.

[achamm]

This is a known issue since n8n v1.87.0 where Cloudflare Tunnel strips the Origin header on websocket connections. You need to go to Cloudflare Dashboard → Rules → Transform Rules and add a “Modify Request Header” rule that sets a static Origin header to https://yourdomain.com for your n8n hostname, and also make sure you have N8N_EDITOR_BASE_URL and N8N_PROTOCOL=https set in your docker env.

[Orionpax]

Welcome to the community @keene

The issue with the “Lost connection to the server” and the “Invalid origin” in the log is because of the WebSocket connection issues while trying to access n8n via Cloudflare Tunnel and SafeLine WAF. n8n is utilizing WebSocket connections for real-time updates, and the proxy is blocking or failing to forward WebSocket connections properly.

Solutions:

1. Configure n8n Environment Variables

Add these to your Docker configuration to allow your Cloudflare Tunnel domain:

services:
  n8n:
    image: n8nio/n8n:latest
    environment:
      - N8N_HOST=your-domain.com  # Your Cloudflare Tunnel domain
      - N8N_PROTOCOL=https
      - WEBHOOK_URL=https://your-domain.com/
      - N8N_EDITOR_BASE_URL=https://your-domain.com/
      - N8N_ALLOWED_ORIGINS=https://your-domain.com
      - VUE_APP_URL_BASE_API=https://your-domain.com/
    # ... rest of config

2. Configure Cloudflare Tunnel for WebSockets

In your Cloudflare Tunnel configuration, ensure WebSocket support is enabled:

# cloudflared config.yml
tunnel: <your-tunnel-id>
credentials-file: /path/to/credentials.json

ingress:
  - hostname: your-domain.com
    service: http://localhost:5678
    originRequest:
      noTLSVerify: false
      connectTimeout: 30s
      http2Origin: false  # Important for WebSocket compatibility
  - service: http_status:404

Or if using the Cloudflare dashboard:

• Go to your tunnel settings

• Enable “WebSocket” support

• Set “HTTP/2” to disabled (use HTTP/1.1 for better WebSocket compatibility)

3. Configure SafeLine WAF

SafeLine WAF might be blocking WebSocket upgrades. You need to:

1. Whitelist WebSocket paths:

   • Add /rest/push to allowed paths

   • Allow WebSocket upgrade headers

2. Disable inspection for WebSocket traffic:

   • WebSocket connections can’t be inspected like regular HTTP

   • Create a rule to bypass WAF for /rest/push endpoint

3. Allow required headers:

   • Upgrade: websocket

   • Connection: Upgrade

   • Sec-WebSocket-Key

   • Sec-WebSocket-Version

4. Update Docker Network Configuration

Ensure proper header forwarding:

services:
  n8n:
    image: n8nio/n8n:latest
    environment:
      - N8N_HOST=your-domain.com
      - N8N_PROTOCOL=https
      - WEBHOOK_URL=https://your-domain.com/
      - N8N_PUSH_BACKEND=websocket  # Explicitly set WebSocket backend
      - N8N_ALLOWED_ORIGINS=*  # Temporary - for testing only!
    # ... rest of config

Note: N8N_ALLOWED_ORIGINS=* allows all origins - use only for testing. Once working, set it to your specific domain.

5. Test WebSocket Connection

After making changes, test if WebSockets work:

1. Open browser DevTools (F12)

2. Go to Network tab

3. Filter by “WS” (WebSocket)

4. Execute a workflow

5. You should see a WebSocket connection to /rest/push

If you see:

• Status 101 (Switching Protocols) = Working

• Status 400/403/502 = Still blocked

6. Alternative: Use Polling Instead of WebSockets

If you can’t get WebSockets working through your proxy setup, switch to polling:

services:
  n8n:
    image: n8nio/n8n:latest
    environment:
      - N8N_PUSH_BACKEND=sse  # Use Server-Sent Events instead
    # ... rest of config

This is less efficient but works better through restrictive proxies.
