Hi everyone,
I’m trying to connect to Bybit’s API (v5 /position/list) using an HTTP Request node in n8n (self-hosted, version 1.89.2), but I keep getting a 401 Unauthorized - please check your credentials error.
Here’s a quick overview of my setup:
- I manually build the HMAC SHA256 signature using the
Cryptonode. - The
prehash_stringis generated like this:{{ $json.timestamp + $json.api_key + $json.recv_window + 'category=' + $json.category }} - Signature is computed with:
- Value:
{{ $json.prehash_string }} - Secret:
{{ $json.api_secret }} - Encoding: HEX
- Value:
- HTTP Request:
-
Method: GET
-
URL:
https://api.bybit.com/v5/position/list?category={{$json.category}} -
Headers:
X-BAPI-API-KEY:{{ $json.api_key }}X-BAPI-TIMESTAMP:{{ $json.timestamp }}X-BAPI-SIGN:{{ $json.signature }}X-BAPI-RECV-WINDOW:5000
-
Despite everything looking good, I still get a 401 response. I’ve double-checked the API key and secret… and retried with new keys… (I’ve deactivated my API keys… I can generate new ones if needed).
Any ideas what could be wrong? Is there something wrong with the prehash_string format or headers?
Thanks a lot for your help!
{

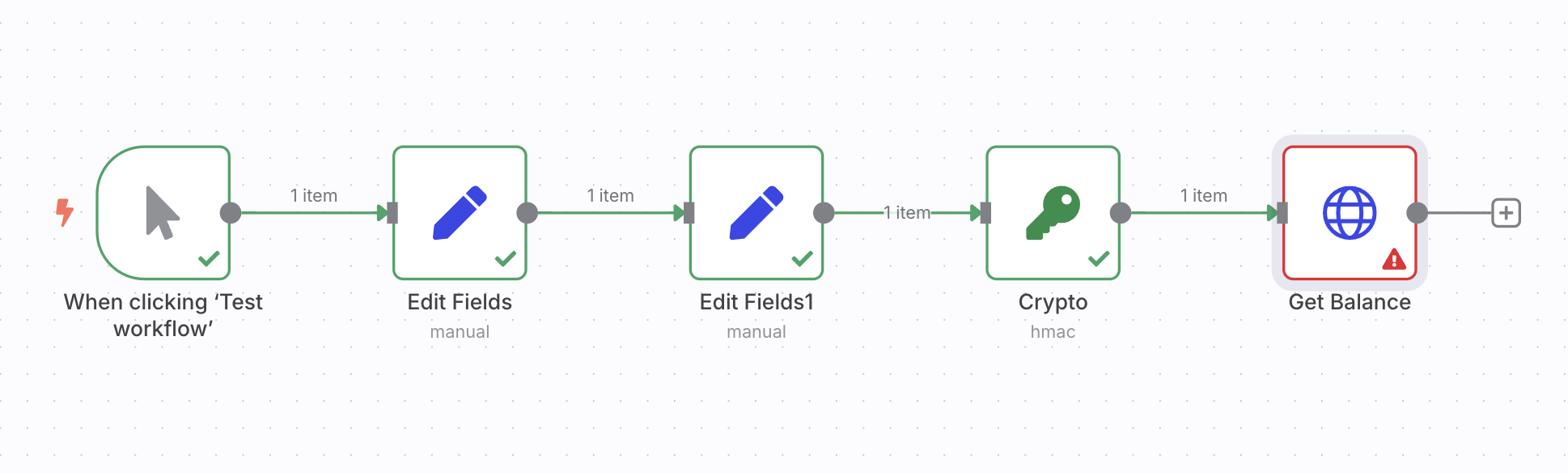

"name": "Bybit - open positions",
"nodes": [
{
"parameters": {},
"type": "n8n-nodes-base.manualTrigger",
"typeVersion": 1,
"position": [
-380,
-260
],
"id": "6d89e884-41c5-495d-84b0-e6b7041db02d",
"name": "When clicking ‘Test workflow’"
},
{
"parameters": {
"assignments": {
"assignments": [
{
"id": "1dd03f20-7a91-4878-b025-9157a9b2edf5",
"name": "=timestamp",
"value": "={{$now.toMillis()}}",
"type": "string"
},
{
"id": "5ef39a4b-bc0d-4bd7-89a4-d72765e5f1af",
"name": "recv_window",
"value": "5000",
"type": "string"
},
{
"id": "86437147-98a7-4893-976b-2acd86960afa",
"name": "api_key",
"value": "UY6COIxxRdYH1K60Ka",
"type": "string"
},
{
"id": "537d80e9-576d-4124-a239-a95c28d8e799",
"name": "category",
"value": "unified",
"type": "string"
},
{
"id": "ebc16101-1838-419e-a3f9-2081521b481b",
"name": "api_secret",
"value": "IKPzrjZ7qzDEIITsMQWUgeIUjFul21Ga8wGX",
"type": "string"
},
{
"id": "b48c578b-d94c-4d8b-92da-c98420f82142",
"name": "=timestamp_iso",
"value": "={{$now.toISO()}}",
"type": "string"
}
]
},
"options": {}
},
"type": "n8n-nodes-base.set",
"typeVersion": 3.4,
"position": [
-160,
-260
],
"id": "fabf0c87-f91d-4d66-a008-1f012b1357f9",
"name": "Edit Fields"
},
{
"parameters": {
"assignments": {
"assignments": [
{
"id": "752bbb17-7c67-4d21-ae0c-d84f704a6bb4",
"name": "=prehash_string",
"value": "={{ $json.timestamp + $json.api_key + $json.recv_window + 'category=' + $json.category}}",
"type": "string"
}
]
},
"includeOtherFields": true,
"options": {}
},
"type": "n8n-nodes-base.set",
"typeVersion": 3.4,
"position": [
60,
-260
],
"id": "3cab4d44-5e26-4654-b7ba-da1771d71f91",
"name": "Edit Fields1"
},
{
"parameters": {
"action": "hmac",
"type": "SHA256",
"value": "={{ $json.prehash_string }}",
"dataPropertyName": "signature",
"secret": "={{ $json.api_secret }}"
},
"type": "n8n-nodes-base.crypto",
"typeVersion": 1,
"position": [
280,
-260
],
"id": "647c446b-0b05-41dc-a0d7-6ee87d266120",
"name": "Crypto"
},
{
"parameters": {
"url": "=https://api.bybit.com/v5/position/list?category={{$json.category}}",
"sendHeaders": true,
"headerParameters": {
"parameters": [
{
"name": "X-BAPI-API-KEY",
"value": "={{ $json.api_key }}"
},
{
"name": "X-BAPI-TIMESTAMP",
"value": "={{ $json.timestamp }}"
},
{
"name": "X-BAPI-RECV-WINDOW",
"value": "={{ $json.recv_window }}"
},
{
"name": "X-BAPI-SIGN",
"value": "={{ $json.signature }}"
}
]
},
"options": {}
},
"type": "n8n-nodes-base.httpRequest",
"typeVersion": 4.2,
"position": [
500,
-260
],
"id": "a25f1f8e-07d8-4856-9338-105e68ab7308",
"name": "Get Balance"
}
],
"pinData": {},
"connections": {
"When clicking ‘Test workflow’": {
"main": [
[
{
"node": "Edit Fields",
"type": "main",
"index": 0
}
]
]
},
"Edit Fields": {
"main": [
[
{
"node": "Edit Fields1",
"type": "main",
"index": 0
}
]
]
},
"Edit Fields1": {
"main": [
[
{
"node": "Crypto",
"type": "main",
"index": 0
}
]
]
},
"Crypto": {
"main": [
[
{
"node": "Get Balance",
"type": "main",
"index": 0
}
]
]
}
},
"active": false,
"settings": {
"executionOrder": "v1"
},
"versionId": "ecb40889-cb5c-4e1c-a319-f698c03f1b8d",
"meta": {
"instanceId": "f0812617b4a1134034f0a08be021c42a664e76b9450939d338d05573765d8e81"
},
"id": "aqAonBkx2hgkYijl",
"tags": []
}```
