Problems sending whatsapp template with media (video or image)

Questions
1

My issue is sending a template via a “WhatsApp Business Cloud node”.

Message in the issue:
“Bad request - please check your parameters
Parameter format does not match format in the created template”

From what I could tell, if I put an image or video in the template, the system starts giving this error. If I put a template without media, it will work normally.

Important: the issue of parameters (which is in the message in the issue) has nothing to do with the parameters placed in the template. Because if I have a template without media and with parameters, it will work normally.

I am working with two versions.

Production: 1.88.0
Test: 1.100.1

I have seen 3 open issues here in the community, but none of them have been answered.

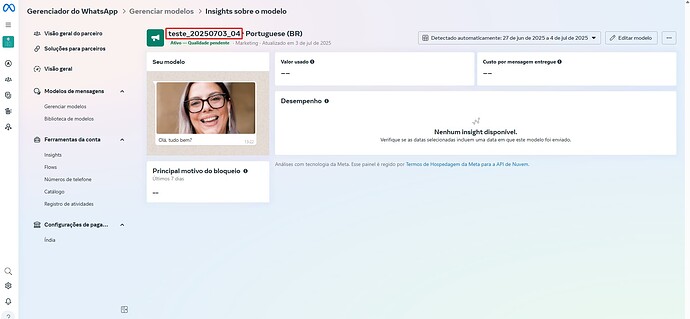

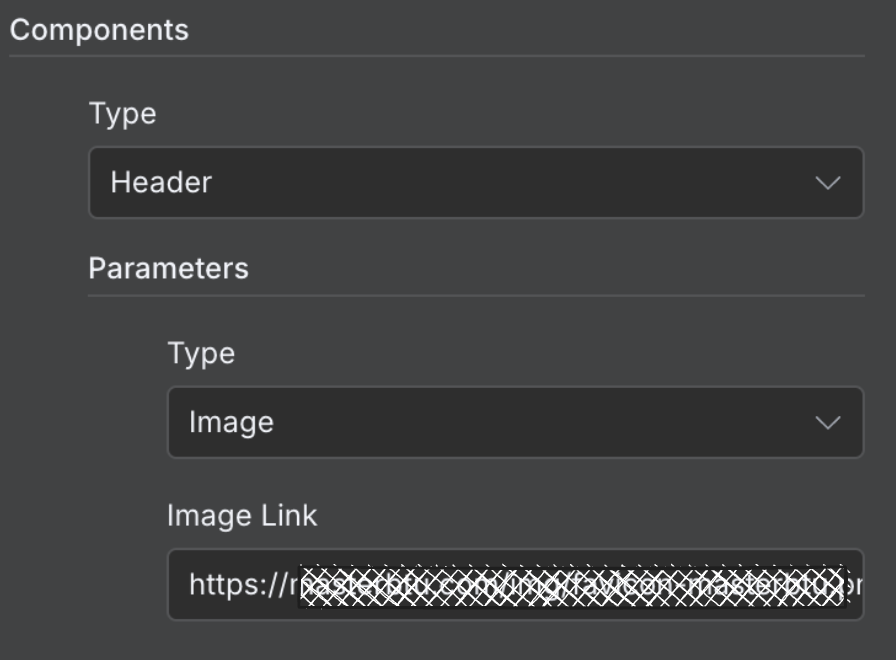

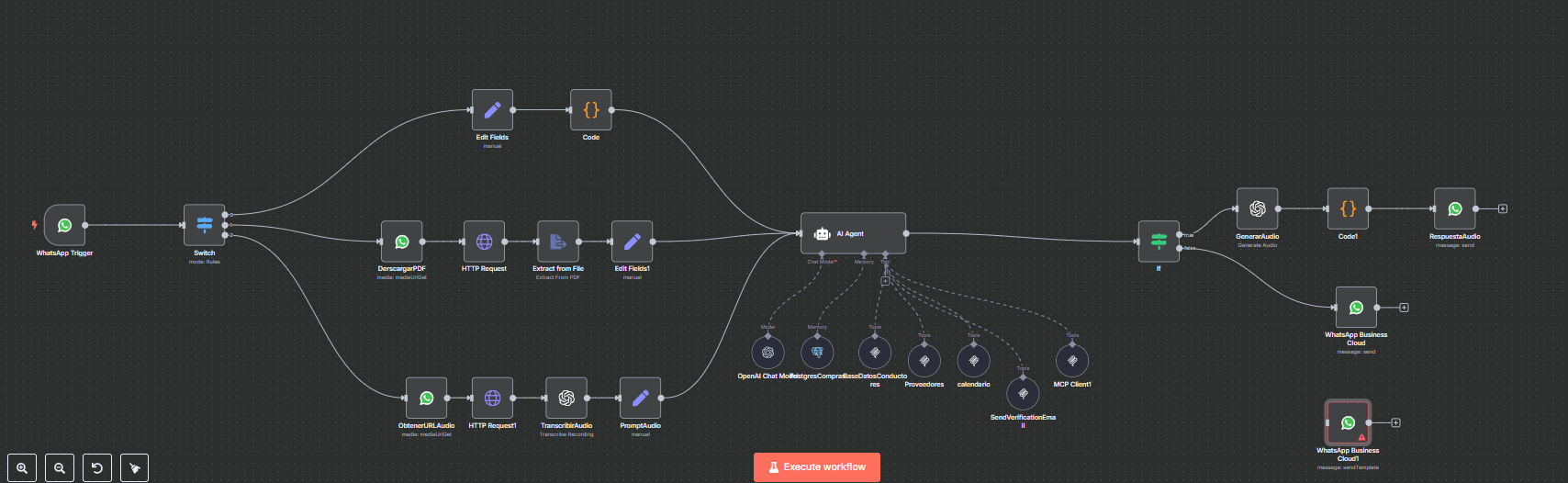

image1914×887 73.6 KB

image1914×887 70.5 KB

image1914×887 159 KB

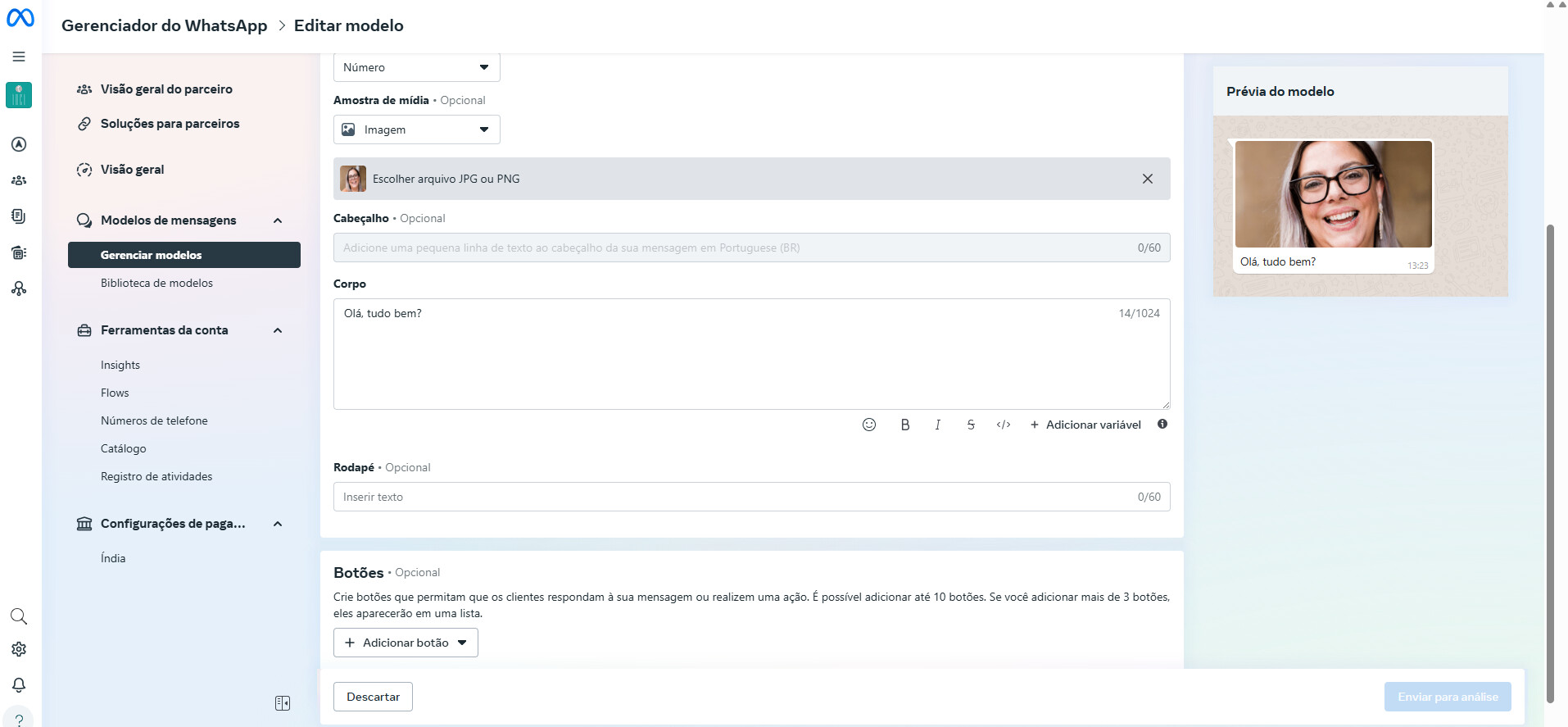

Simple template with no parameters, no buttons, just text and media.

Information on your n8n setup

  • n8n version: 1.100.1
  • Database (default: SQLite): PostgreSQL
  • n8n EXECUTIONS_PROCESS setting (default: own, main): default
  • Running n8n via (Docker, npm, n8n cloud, desktop app): Coolify
  • Operating system: Linux
1 Like
2

whatsapp business cloud api has a specific requirements for media templates
for media templates , whatsapp require the media to be
A media ID [pre-uploaded to whatsapp servers]
or
A direct Https link to the media file
or
Raw binary Data for direct uploads

secondly maybe it is the template structure mismatch or n8n node limitation but firstly , pre-upload your media
upload your mdia files to whatsapp servers to get the media HD
configure the http request node and send the template with the media ID

please incase you still don’t get it my pleasure to always give you the full details

3

Thank you very much for the answer!

Maybe N8N has problems sending templates with media.

Do you have any example of pre-uploading media to get the ID? So that I can send it not as a template, but as a regular message.

I’ve already tried sending it with the link, it doesn’t give any error, and the message doesn’t arrive.

1 Like
4

Alright so thanks for reaching out back … if you follow the below steps you should be able to solve it.
since you are sending as a regular message instead , To pre-upload media to whatsapp servers, n8n requests node configurations..

Authentication: OAuth2[you should use your whatsapp api cloud credentials here ]
url: https://graph.facebook.com/v19.0/{{your-phone-number-id}}/media
method : your method should be POST
Headers :

{
"content-Type": "application/json"
}

then Body(Json for direct URL uploads

{
"messaging_product" : "whatsapp",
"url": "https://your-publicly-accessible-image-url.jpg",
"type": "image/jpeg"
}

but then kindly reach ou if you still need some extra help , i will be very glad to help you sir :folded_hands:

1 Like
5

please click on the solution button if i actually solved the problem , i will be very glad sir
thank you !!
