Webhooks not responding to FlutterFlow web apps

artildo · May 11, 2023, 7:16am

I understand, this is a particular case. I tried to apply a popular no-code builder FlutterFlow to demonstrate webhooks and responses.

So when I run the app in the test mode, it worked fine. It sends the webhook, receives the result from the “Respond to Webhook” node.

But when I compile the web app in FF, it doesn’t work. The workflow is working, but the app doesn’t receive the response.

I tried non n8n-based webhooks with responses like this one: RequestBin.com — A modern request bin to collect, inspect and debug HTTP requests and webhooks. It works fine.
So there is something strange about Respond to Webhooks in n8n.

If you a FF user, I can share a simple 1-button project to see the bug.

Jon · May 11, 2023, 7:41am

Hey @artildo,

If it is working in the test mode and the workflow is running it would be very odd for the issue to be the node as I would expect it to not work at all. My money is on it being a CORS issue, If you open the browser dev console assuming it is the web app version and click the button do you get any errors in the console?

artildo · May 11, 2023, 8:08am

@Jon, thank you for replying

When I click the button in the Test mode FF app:

When I click the button in the Web app, I get this:

Jon · May 11, 2023, 8:08am

Hey @artildo,

Can you check the console tab from the web app.

artildo · May 11, 2023, 8:32am

@Jon

This is how it looks:

Jon · May 11, 2023, 8:57am

Hey @artildo,

That Access to XMLHttpRequest line mentions a CORS policy, That will likely be the issue. You will need to adjust your reverse proxy to add the access control header and you should be good to go.

artildo · May 11, 2023, 9:30am

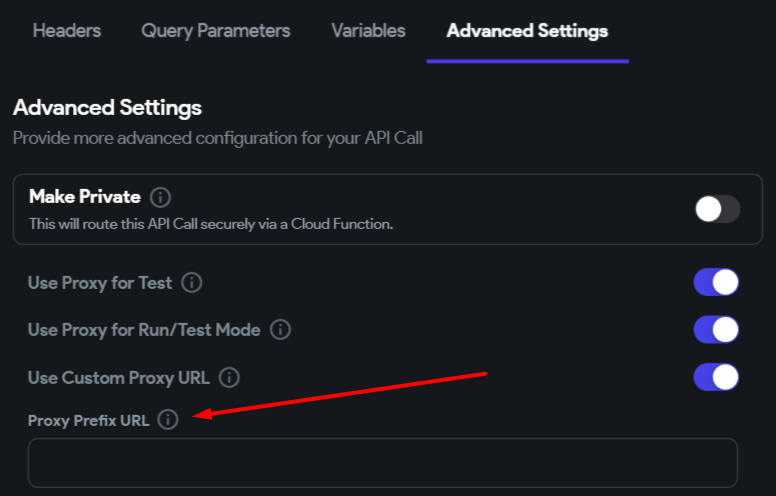

@Jon Thank you. If I get you correctly, I need to add some URL here in API Call settings:

I no nothing about proxy URLs. Do I need to get this URL somewhere in n8n or from some 3rd party?

Jon · May 11, 2023, 9:37am

Hey @artildo,

It would normally be something your reverse proxy to your n8n instance would add.

artildo · May 11, 2023, 11:27am

@Jon I’m not sure if I can find this proxy thing in my n8n instance…

I found this thread about likely the same issue: Unable to Make API Call through Flutter (Web)

So Jan there offers to use traefik to add CORS-related headers. I went on and according to the manual updated my docker-compose.yml:

n8n:
   ...
    labels:
      ...
      - traefik.http.middlewares.n8n.headers.accesscontrolallowmethods=GET,OPTIONS,PUT
      - traefik.http.middlewares.n8n.headers.accesscontrolallowheaders=*
      - traefik.http.middlewares.n8n.headers.accesscontrolalloworiginlist=*
      - traefik.http.middlewares.n8n.headers.accesscontrolmaxage=100
      - traefik.http.middlewares.n8n.headers.addvaryheader=true

Still not working, alas

Jon · May 11, 2023, 12:24pm

Hey @artildo,

Have you checked that the header has been added?

artildo · May 11, 2023, 12:43pm

@Jon possibly, I need a guide how to add headers via traefik in n8n. It seems I do it wrong and no headers appear

So I moved the instructions to the trafik section and added quotes, how it’s shown in the manual. Restarted docker-compose.
I have:

services:
  traefik:
    ...
    volumes:
      - ${DATA_FOLDER}/letsencrypt:/letsencrypt
      - /var/run/docker.sock:/var/run/docker.sock:ro
    labels:
      - "traefik.http.middlewares.n8n.headers.accesscontrolallowmethods=GET,OPTIONS,PUT"
      - "traefik.http.middlewares.n8n.headers.accesscontrolallowheaders=*"
      - "traefik.http.middlewares.n8n.headers.accesscontrolalloworiginlist=*"
      - "traefik.http.middlewares.n8n.headers.accesscontrolmaxage=100"
      - "traefik.http.middlewares.n8n.headers.addvaryheader=true"

Then I start the webhook and launch it in the browser. No new headers:

object		{4}
	headers		{22}
host	:	***
user-agent	:	Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/113.0.0.0 Safari/537.36
...
...
...
if-none-match	:	W/\"ee9-M/wKHCxkCLfBCqb3MuxGo5/87vw\"
sec-ch-ua	:	\"Google Chrome\";v=\"113\", \"Chromium\";v=\"113\", \"Not-A.Brand\";v=\"24\"
sec-ch-ua-mobile	:	?0
sec-ch-ua-platform	:	\"Windows\"
sec-fetch-dest	:	document
sec-fetch-mode	:	navigate
sec-fetch-site	:	none
sec-fetch-user	:	?1
upgrade-insecure-requests	:	1
x-forwarded-for	:	***
x-forwarded-host	:	***
x-forwarded-port	:	443
x-forwarded-proto	:	https
x-forwarded-server	:	***
x-real-ip	:	***

Jon · May 11, 2023, 1:11pm

Hey @artildo,

Can you share the full compose file?

artildo · May 11, 2023, 1:20pm

@Jon, I added the “labels” section into traefik part.

version: "3"

services:
  traefik:
    image: "traefik"
    restart: always
    command:
      - "--api=true"
      - "--api.insecure=true"
      - "--providers.docker=true"
      - "--providers.docker.exposedbydefault=false"
      - "--entrypoints.web.address=:80"
      - "--entrypoints.web.http.redirections.entryPoint.to=websecure"
      - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
      - "--entrypoints.websecure.address=:443"
      - "--certificatesresolvers.mytlschallenge.acme.tlschallenge=true"
      - "--certificatesresolvers.mytlschallenge.acme.email=${SSL_EMAIL}"
      - "--certificatesresolvers.mytlschallenge.acme.storage=/letsencrypt/acme.json"
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ${DATA_FOLDER}/letsencrypt:/letsencrypt
      - /var/run/docker.sock:/var/run/docker.sock:ro
    labels:
      - "traefik.http.middlewares.n8n.headers.accesscontrolallowmethods=GET,OPTIONS,PUT"
      - "traefik.http.middlewares.n8n.headers.accesscontrolallowheaders=*"
      - "traefik.http.middlewares.n8n.headers.accesscontrolalloworiginlist=*"
      - "traefik.http.middlewares.n8n.headers.accesscontrolmaxage=100"
      - "traefik.http.middlewares.n8n.headers.addvaryheader=true"
  n8n:
    image: n8nio/n8n
    restart: always
    ports:
      - "127.0.0.1:5678:5678"
    labels:
      - traefik.enable=true
      - traefik.http.routers.n8n.rule=Host(`${SUBDOMAIN}.${DOMAIN_NAME}`)
      - traefik.http.routers.n8n.tls=true
      - traefik.http.routers.n8n.entrypoints=web,websecure
      - traefik.http.routers.n8n.tls.certresolver=mytlschallenge
      - traefik.http.middlewares.n8n.headers.SSLRedirect=true
      - traefik.http.middlewares.n8n.headers.STSSeconds=315360000
      - traefik.http.middlewares.n8n.headers.browserXSSFilter=true
      - traefik.http.middlewares.n8n.headers.contentTypeNosniff=true
      - traefik.http.middlewares.n8n.headers.forceSTSHeader=true
      - traefik.http.middlewares.n8n.headers.SSLHost=${DOMAIN_NAME}
      - traefik.http.middlewares.n8n.headers.STSIncludeSubdomains=true
      - traefik.http.middlewares.n8n.headers.STSPreload=true
    environment:
      - N8N_BASIC_AUTH_ACTIVE=true
      - N8N_BASIC_AUTH_USER
      - N8N_BASIC_AUTH_PASSWORD
      - N8N_HOST=${SUBDOMAIN}.${DOMAIN_NAME}
      - N8N_PORT=5678
      - N8N_PROTOCOL=https
      - NODE_ENV=production
      - WEBHOOK_URL=https://${SUBDOMAIN}.${DOMAIN_NAME}/
      - GENERIC_TIMEZONE=${GENERIC_TIMEZONE}
      - EXECUTIONS_PROCESS=main
      - EXECUTIONS_DATA_PRUNE=true
      - EXECUTIONS_DATA_MAX_AGE=24
      - DB_SQLITE_VACUUM_ON_STARTUP=true
      - N8N_EMAIL_MODE=smtp
      - N8N_SMTP_PORT=465
      - N8N_SMTP_HOST=${SMTP_HOST}
      - N8N_SMTP_USER=${SMTP_USER}
      - N8N_SMTP_PASS=${SMTP_PASS}
      - N8N_SMTP_SENDER=${SMTP_SENDER}
      - amoCRM_refresh_token=${amoCRM_refresh_token}
    volumes:
      - ${DATA_FOLDER}/.n8n:/home/node/.n8n
      - /local-files:/files

artildo · May 12, 2023, 7:54am

@Jon I found this and that helped:

Ryzenberg · June 2, 2023, 12:45pm

hi @artildo,

I think that I have the same problem in a custom action on flutterflow.

How can I add this Traefik’s labels to solve this problem?

artildo · June 2, 2023, 1:11pm

@Ryzenberg

According to that solution, I added these labels:

n8n:
    ...
    labels:
      ...
      - traefik.http.middlewares.cors.headers.customResponseHeaders.Access-Control-Allow-Origin=*
      - traefik.http.middlewares.cors.headers.customResponseHeaders.Access-Control-Allow-Methods=GET, POST, OPTIONS
      - traefik.http.middlewares.cors.headers.customResponseHeaders.Access-Control-Allow-Headers=DNT,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Range,Authorization
      - [email protected]

Ryzenberg · June 2, 2023, 1:37pm

thanks for replying.

I didn’t understant where can I put this on flutterflow.io.

Can you show me on the app? or say the way to find where put this Traefik code.

artildo · June 2, 2023, 2:06pm

@Ryzenberg You don’t need to put it on flutterflow.

How did you install n8n? I installed it using docker-compose, and made these changes in the docker-compose.yml
