Run a small internal HTTP service (Node is easiest) that:
-
receives { method, path/full URL, query/body }
-
signs the request using OAuth1 HMAC-SHA1
-
forwards the request to OSCAR
-
returns OSCAR’s response
n8n calls this service via a normal HTTP Request node instead of calling OSCAR directly
So the flow becomes: n8n → signer/proxy → OSCAR → signer/proxy → n8n
n8n never needs to store OAuth1 secrets in a credential, never opens an authorization page, and never needs crypto.
This is a very common pattern for legacy OAuth1 APIs and should work reliably with OSCAR if you already have the permanent token + secret.
Here’s a minimal, Docker-friendly Node OAuth1 signer/proxy you can run next to n8n. It takes a simple JSON payload from n8n, signs the request with your consumer key/secret + Postman access token/secret, forwards it to OSCAR, and returns the raw response.
1) Create these 3 files in a folder (e.g. oscar-oauth-proxy/)
docker-compose.yml
services:
oscar-oauth-proxy:
build: .
container_name: oscar-oauth-proxy
environment:
PORT: "3000"
# OSCAR base URL (no trailing slash is best)
OSCAR_BASE_URL: "https://example.com/oscar"
# From OSCAR REST Clients registration
CONSUMER_KEY: "YOUR_CONSUMER_KEY"
CONSUMER_SECRET: "YOUR_CONSUMER_SECRET"
# From Postman (permanent token + secret)
ACCESS_TOKEN: "YOUR_ACCESS_TOKEN"
ACCESS_TOKEN_SECRET: "YOUR_ACCESS_TOKEN_SECRET"
# Optional - Recommended: shared secret auth for the proxy endpoint
PROXY_SHARED_SECRET: "change-me"
ports:
- "3000:3000"
restart: unless-stopped
Dockerfile
FROM node:20-alpine
WORKDIR /app
COPY package.json package-lock.json* ./
RUN npm ci || npm i
COPY server.js ./
EXPOSE 3000
CMD ["node", "server.js"]
package.json
{
"name": "oscar-oauth1-proxy",
"version": "1.0.0",
"type": "module",
"dependencies": {
"express": "^4.19.2",
"node-fetch": "^3.3.2",
"oauth-1.0a": "^2.2.6"
}
}
server.js
import express from "express";
import fetch from "node-fetch";
import OAuth from "oauth-1.0a";
import crypto from "crypto";
const {
PORT = 3000,
OSCAR_BASE_URL,
CONSUMER_KEY,
CONSUMER_SECRET,
ACCESS_TOKEN,
ACCESS_TOKEN_SECRET,
PROXY_SHARED_SECRET,
} = process.env;
for (const k of ["OSCAR_BASE_URL","CONSUMER_KEY","CONSUMER_SECRET","ACCESS_TOKEN","ACCESS_TOKEN_SECRET"]) {
if (!process.env[k]) throw new Error(`Missing env var: ${k}`);
}
const oauth = new OAuth({
consumer: { key: CONSUMER_KEY, secret: CONSUMER_SECRET },
signature_method: "HMAC-SHA1",
hash_function(baseString, key) {
return crypto.createHmac("sha1", key).update(baseString).digest("base64");
},
});
const token = { key: ACCESS_TOKEN, secret: ACCESS_TOKEN_SECRET };
const app = express();
app.use(express.json({ limit: "2mb" }));
/**
* POST /oscar
* Headers:
* x-proxy-secret: <PROXY_SHARED_SECRET> (if configured)
* Body:
* {
* "method": "GET"|"POST"|"PUT"|"DELETE",
* "path": "/ws/rs/...." OR full URL,
* "query": { ... }, // optional
* "body": { ... } | "raw", // optional
* "headers": { ... } // optional
* }
*/
app.post("/oscar", async (req, res) => {
try {
// Optional shared-secret protection
if (PROXY_SHARED_SECRET) {
const got = req.header("x-proxy-secret");
if (!got || got !== PROXY_SHARED_SECRET) {
return res.status(401).json({ error: "Unauthorized (proxy secret)" });
}
}
const method = String(req.body?.method || "GET").toUpperCase();
const pathOrUrl = req.body?.path;
const query = req.body?.query || {};
const body = req.body?.body;
const extraHeaders = req.body?.headers || {};
if (!pathOrUrl || typeof pathOrUrl !== "string") {
return res.status(400).json({ error: "Missing 'path' (string)" });
}
// Build URL: accept either full URL or a path appended to OSCAR_BASE_URL
let url;
if (/^https?:\/\//i.test(pathOrUrl)) {
url = new URL(pathOrUrl);
} else {
const base = OSCAR_BASE_URL.replace(/\/+$/, "");
url = new URL(base + pathOrUrl);
}
for (const [k, v] of Object.entries(query)) {
url.searchParams.set(k, String(v));
}
const requestData = { url: url.toString(), method };
const authHeader = oauth.toHeader(oauth.authorize(requestData, token));
const headers = {
Accept: "application/json, */*",
...extraHeaders,
...authHeader,
};
const opts = { method, headers };
// Add body if not GET/HEAD
if (body !== undefined && method !== "GET" && method !== "HEAD") {
// default to JSON if body is an object
if (typeof body === "object" && body !== null && !Buffer.isBuffer(body)) {
headers["Content-Type"] = headers["Content-Type"] || "application/json";
opts.body = JSON.stringify(body);
} else {
headers["Content-Type"] = headers["Content-Type"] || "text/plain";
opts.body = String(body);
}
}
const r = await fetch(url.toString(), opts);
// Pass through response status + content-type
const contentType = r.headers.get("content-type") || "text/plain";
const text = await r.text();
res.status(r.status);
res.setHeader("content-type", contentType);
res.send(text);
} catch (e) {
res.status(500).json({ error: String(e?.message || e) });
}
});
app.listen(PORT, () => {
console.log(`OSCAR OAuth1 proxy listening on :${PORT}`);
});
2) Run it
From that folder:
docker compose up -d --build
Quick smoke test
If it starts and listens, run:
curl -X POST http://localhost:3000/oscar \
-H "Content-Type: application/json" \
-H "x-proxy-secret: change-me" \
-d '{"method":"GET","path":"/ws/rs/patient/12345"}'
If that returns a 200/401 from OSCAR, your proxy wiring is correct and you can move to n8n.
3) Call it from n8n (single HTTP Request node)
HTTP Request Node
{
"method": "GET",
"path": "/ws/rs/patient/12345"
}
With query params:
{
"method": "GET",
"path": "/ws/rs/something",
"query": { "startDate": "2026-01-01", "endDate": "2026-01-31" }
}
If the proxy is reachable, you’ll get one of these outcomes:
-
200 + data → it works
-
401 from proxy → missing/wrong x-proxy-secret
-
500 from proxy → proxy env vars wrong / token invalid / upstream error
-
Connection refused / timeout → n8n cannot reach the proxy URL (networking)
Notes
-
If n8n is also in Docker, put both services on the same Docker network (Compose does this automatically if they’re in the same compose file, or you can attach networks).
-
Keep this proxy private (LAN/VPN) or protected with the x-proxy-secret header.
If anyone knows a better way or can see flaws in my answer please speak up as I’d genuinely like to learn.

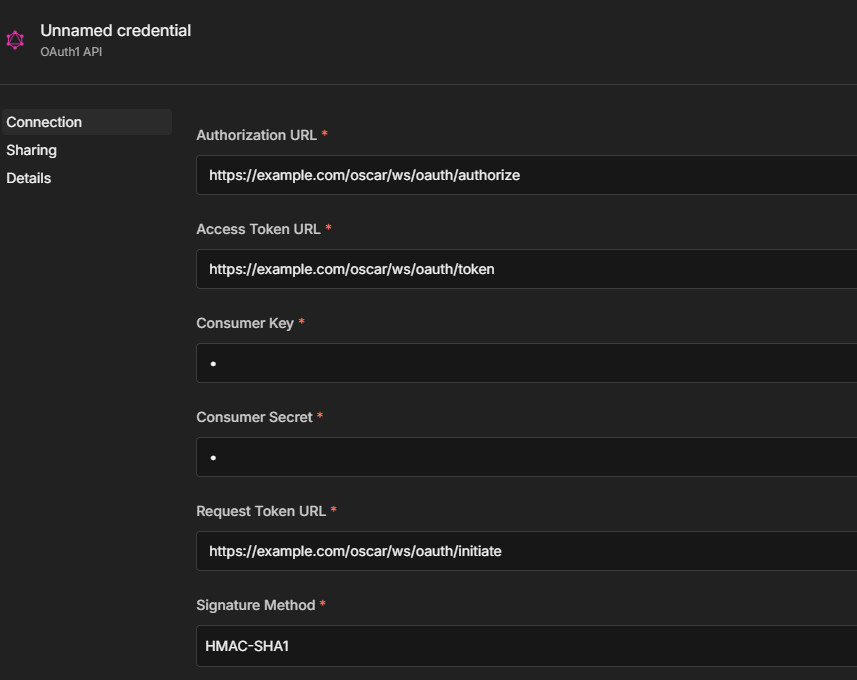

! In practice I solve this by skipping Connect my account and using the HTTP Request node with Authentication set to None, manually signing the OAuth1 request just like Postman does. OSCAR doesnt support the full OAuth 1.0a authorization flow required by the OAuth1 Generic credential.
