works like a charm. thanks
1 Like
I’ve been trying to set this up all day! but I don’t know why sometimes the information is not included in the execution data or it’s path changes!
This is the workflow:
First, I manually set the value (execution.id) into a custom variable (execution_id):

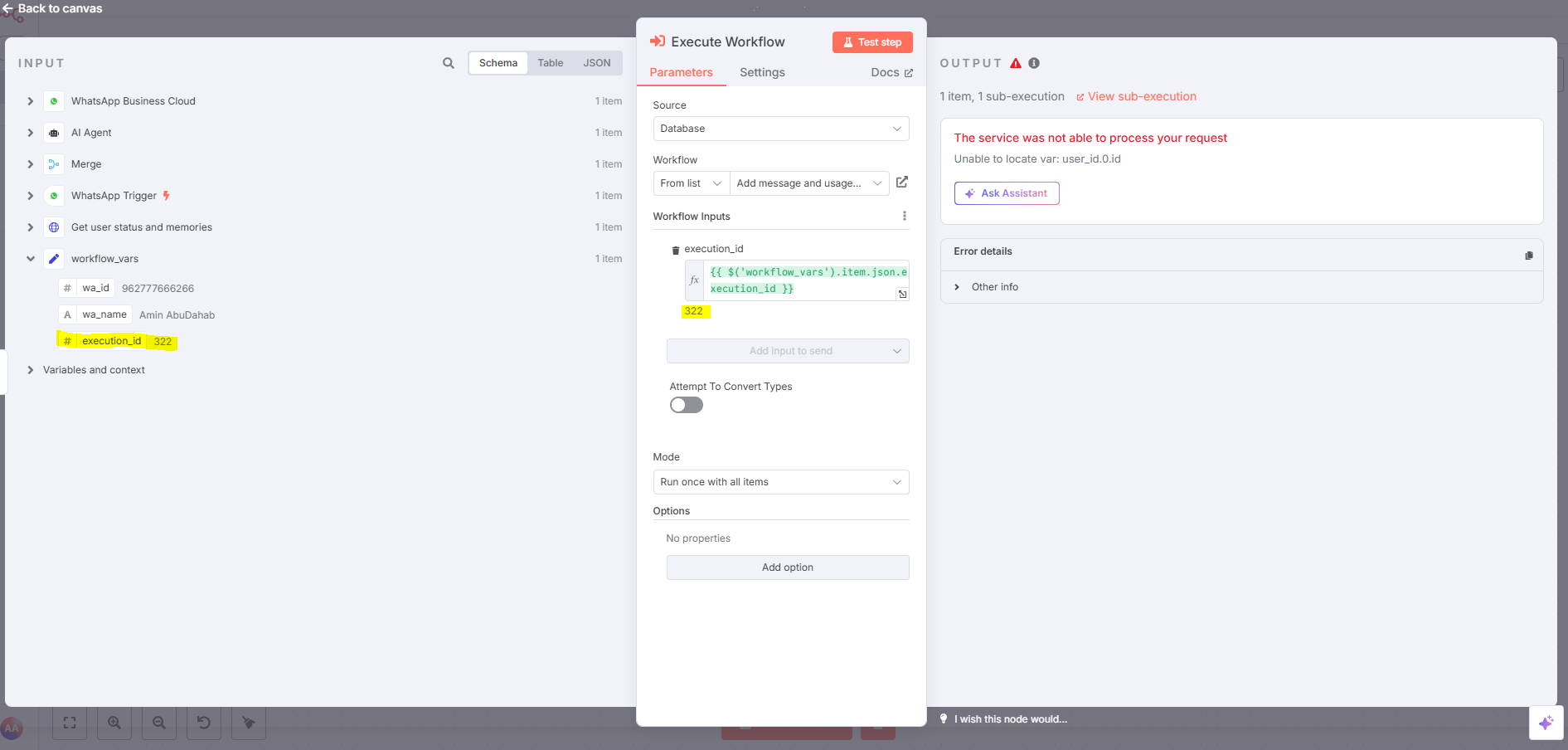

Which I’ll later pass to the last step (calling the sub workflow) like so:

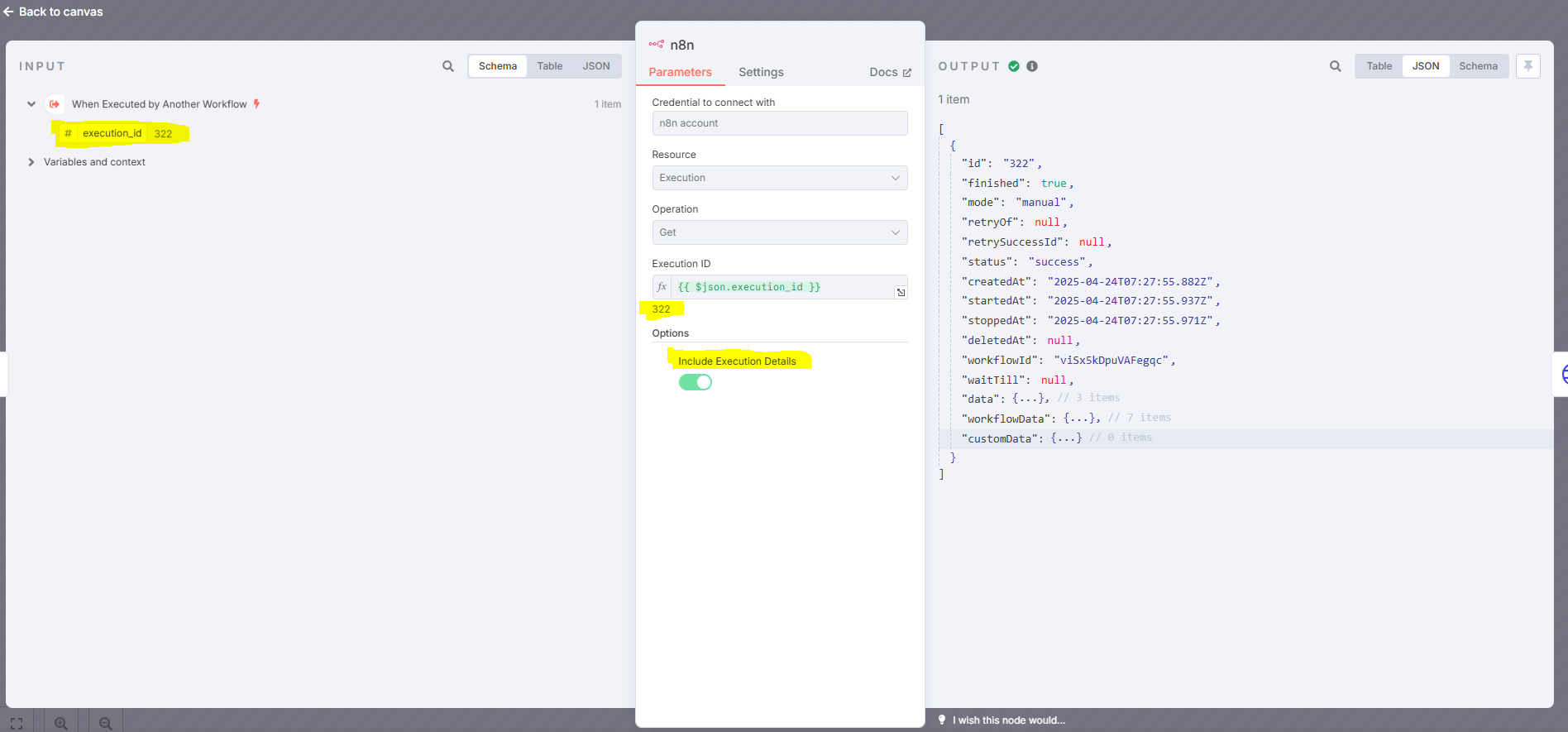

This is the second/sub workflow:
It takes the execution_id from the parent workflow and passes it to the next n8n.get execution step:

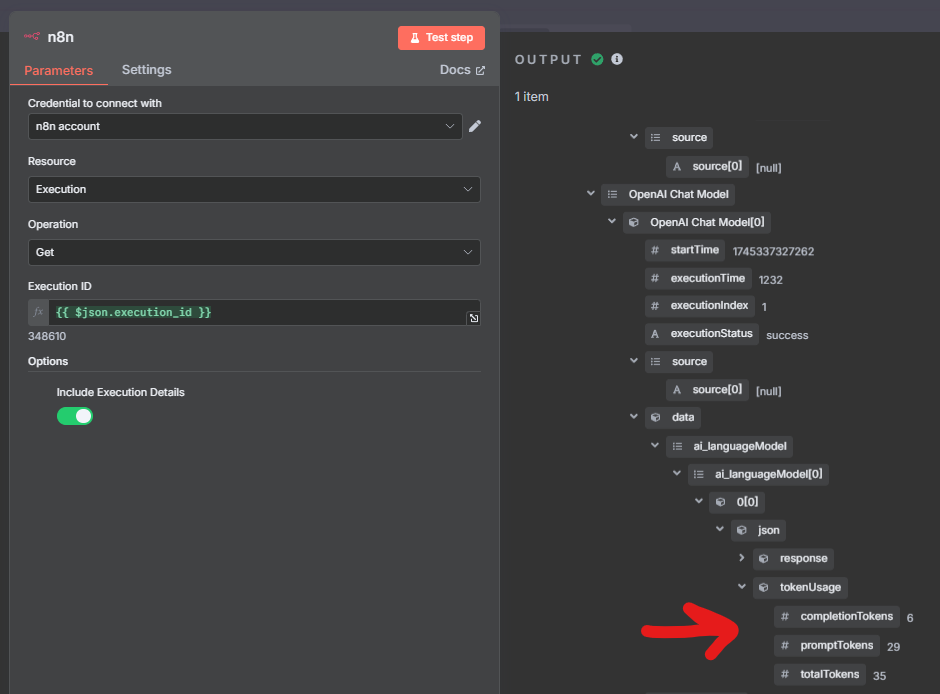

The step seems to work fine, but as I mentioned earlier the tokenUsage object can sometimes be missing or if it exists the path isn’t always consistent. in this case it’s missing and I can’t find it at all! here’s the JSON output:
[
{
"id": "322",
"finished": true,
"mode": "manual",
"retryOf": null,
"retrySuccessId": null,
"status": "success",
"createdAt": "2025-04-24T07:27:55.882Z",
"startedAt": "2025-04-24T07:27:55.937Z",
"stoppedAt": "2025-04-24T07:27:55.971Z",
"deletedAt": null,
"workflowId": "viSx5kDpuVAFegqc",
"waitTill": null,
"data": {
"startData": {
"destinationNode": "workflow_vars",
"runNodeFilter": [
"WhatsApp Trigger",
"workflow_vars"
]
},
"resultData": {
"runData": {
"WhatsApp Trigger": [
{
"hints": [],
"startTime": 1745479660310,
"executionTime": 0,
"source": [],
"executionStatus": "success",
"data": {
"main": [
[
{
"json": {
"messaging_product": "whatsapp",
"metadata": {
"display_phone_number": "15556407176",
"phone_number_id": "552650594608063"
},
"contacts": [
{
"profile": {
"name": "Amin AbuDahab"
},
"wa_id": "962777666266"
}
],
"messages": [
{
"from": "962777666266",
"id": "wamid.HBgMOTYyNzc3NjY2MjY2FQIAEhggOENGQTJCODlCRUZCOTZERUJFNjEzODU5NEFCQUFERkYA",
"timestamp": "1745479658",
"text": {
"body": "Good morning"
},
"type": "text"
}
],
"field": "messages"
},
"pairedItem": {
"item": 0
}
}
]
]
}
}
],
"workflow_vars": [
{
"hints": [],
"startTime": 1745479675970,
"executionTime": 1,
"source": [
{
"previousNode": "WhatsApp Trigger",
"previousNodeOutput": 0,
"previousNodeRun": 0
}
],
"executionStatus": "success",
"data": {
"main": [
[
{
"json": {
"wa_id": 962777666266,
"wa_name": "Amin AbuDahab",
"execution_id": 322
},
"pairedItem": {
"item": 0
}
}
]
]
}
}
]
},
"pinData": {},
"lastNodeExecuted": "workflow_vars"
},
"executionData": {
"contextData": {},
"nodeExecutionStack": [],
"metadata": {},
"waitingExecution": {},
"waitingExecutionSource": {}
}
},
"workflowData": {
"id": "viSx5kDpuVAFegqc",
"name": "ZakZak",
"active": false,
"nodes": [
{
"parameters": {
"notice_tip": "",
"agent": "toolsAgent",
"promptType": "define",
"text": "={{ $json.messages[0].text.body }}",
"hasOutputParser": false,
"options": {
"systemMessage": "=# ROLE\nYou are a friendly AI assistant.\n\n# RULES\nWhen a user sends a new message, decide if the user provided any noteworthy information that should be stored in memory. If so, call the Save Memory tool to store this information in memory. DO NOT inform the user that this information was stored in memory. Simply continue to answer the question or executing the next tasks.\n\n# Tools\n## Save Memory\nUse this tool to store information about the user. Extract and summarize interesting information from the user message and pass it to this tool.\n\n# Memories\nHere are the last noteworthy memories that you've collected from the user sorted from newest to oldest (note: it can be empty):\n{{ $json.memories.toJsonString() }}\n\n# N.B.\nFor context this is time and date now:{{ $now }}\nThe user's country code is: {{ $json.country_code }}\n\n\n\n!! IMPORTANT!\nThink carefully about your responses and take the user's preferences into account!\nAlso consider the order of the memory in order to respond with the most up to date information.\n\n"
},
"credentials": ""
},
"type": "@n8n/n8n-nodes-langchain.agent",
"typeVersion": 1.7,
"position": [
1360,
300
],
"id": "455eda4e-8a1e-4b0a-8b4f-1f474c023479",
"name": "AI Agent"
},
{
"parameters": {
"mode": "combine",
"combineBy": "combineByPosition",
"numberInputs": 2,
"options": {}
},
"type": "n8n-nodes-base.merge",
"typeVersion": 3,
"position": [
1180,
300
],
"id": "1a21c380-04df-4c0c-bb5f-dea6e62d60e6",
"name": "Merge"
},
{
"parameters": {
"notice": "",
"sessionIdType": "customKey",
"sessionKey": "={{ $('WhatsApp Trigger').item.json.contacts[0].wa_id }}",
"contextWindowLength": 50
},
"type": "@n8n/n8n-nodes-langchain.memoryBufferWindow",
"typeVersion": 1.3,
"position": [
1440,
520
],
"id": "c7254f2a-ffd1-4cd4-9516-8b9267f3fbdd",
"name": "Window Buffer Memory"
},
{
"parameters": {
"curlImport": "",
"method": "GET",
"url": "https://xlw9-snvs-z50z.f2.xano.io/api:Lkzci_RP/message_trigger",
"authentication": "none",
"provideSslCertificates": false,
"sendQuery": true,
"specifyQuery": "keypair",
"queryParameters": {
"parameters": [
{
"name": "wa_id",
"value": "={{ $json.wa_id }}"
},
{
"name": "wa_name",
"value": "={{ $json.wa_name }}"
},
{
"name": "message_type",
"value": "={{ $('WhatsApp Trigger').item.json.messages[0].type }}"
},
{
"name": "message",
"value": "={{ $('WhatsApp Trigger').item.json.messages[0].text.body }}"
}
]
},
"sendHeaders": false,
"sendBody": false,
"options": {},
"infoMessage": ""
},
"type": "n8n-nodes-base.httpRequest",
"typeVersion": 4.2,
"position": [
980,
440
],
"id": "f9c7bbc5-0aaf-4120-b024-72f8bf99fd26",
"name": "Get user status and memories",
"alwaysOutputData": false
},
{
"parameters": {
"notice": "",
"toolDescription": "",
"method": "POST",
"placeholderNotice": "",
"url": "https://xlw9-snvs-z50z.f2.xano.io/api:Lkzci_RP/add_memory",
"authentication": "none",
"sendQuery": true,
"specifyQuery": "keypair",
"parametersQuery": {
"values": [
{
"name": "memory",
"valueProvider": "modelOptional"
},
{
"name": "wa_id",
"valueProvider": "fieldValue",
"value": "={{ $('workflow_vars').item.json.wa_id }}"
}
]
},
"sendHeaders": false,
"sendBody": false,
"placeholderDefinitions": {},
"optimizeResponse": false
},
"type": "@n8n/n8n-nodes-langchain.toolHttpRequest",
"typeVersion": 1.1,
"position": [
1580,
520
],
"id": "642ab1d3-baf5-43af-b596-8cec8da66b9d",
"name": "Add memory"
},
{
"parameters": {
"whatsAppNotice": "",
"updates": [
"messages"
],
"options": {}
},
"type": "n8n-nodes-base.whatsAppTrigger",
"typeVersion": 1,
"position": [
660,
280
],
"id": "7f110e57-fb74-417f-99eb-55a6de962383",
"name": "WhatsApp Trigger",
"webhookId": "e9a2a0b5-11ec-4172-97dc-661e5a124542",
"credentials": {
"whatsAppTriggerApi": {
"id": "j2QURNIfpF36fjeU",
"name": "WhatsApp OAuth account"
}
}
},
{
"parameters": {
"resource": "message",
"operation": "send",
"messagingProduct": "whatsapp",
"phoneNumberId": "552650594608063",
"recipientPhoneNumber": "={{ $('WhatsApp Trigger').item.json.contacts[0].wa_id }}",
"messageType": "text",
"textBody": "={{ $json.output }}",
"additionalFields": {}
},
"type": "n8n-nodes-base.whatsApp",
"typeVersion": 1,
"position": [
1720,
300
],
"id": "681173b7-d764-4a9c-a0c4-83d1dd75f91d",
"name": "WhatsApp Business Cloud",
"webhookId": "0e272817-32a5-4fbf-81fd-4a56ee162e83",
"credentials": {
"whatsAppApi": {
"id": "bhwK4BEOJxLBSF1G",
"name": "WhatsApp account"
}
}
},
{
"parameters": {
"notice": "",
"model": {
"__rl": true,
"mode": "list",
"value": "gpt-4o-mini"
},
"options": {}
},
"type": "@n8n/n8n-nodes-langchain.lmChatOpenAi",
"typeVersion": 1.2,
"position": [
1300,
520
],
"id": "4d994cbf-9fc7-4c0d-948f-71952c2567e7",
"name": "Chat Model",
"credentials": {
"openAiApi": {
"id": "zSZgvjgxMSNFuR2v",
"name": "My OpenAI Key"
}
}
},
{
"parameters": {
"operation": "call_workflow",
"source": "database",
"workflowId": {
"__rl": true,
"value": "vB5r2L24sjm0E0Ya",
"mode": "list",
"cachedResultName": "Add message and usage tokens"
},
"workflowInputs": {
"mappingMode": "defineBelow",
"value": {
"execution_id": "={{ $('workflow_vars').item.json.execution_id }}"
},
"matchingColumns": [
"execution_id"
],
"schema": [
{
"id": "execution_id",
"displayName": "execution_id",
"required": false,
"defaultMatch": false,
"display": true,
"canBeUsedToMatch": true,
"type": "number",
"removed": false
}
],
"attemptToConvertTypes": false,
"convertFieldsToString": true
},
"mode": "once",
"options": {}
},
"type": "n8n-nodes-base.executeWorkflow",
"typeVersion": 1.2,
"position": [
1940,
300
],
"id": "e6d93b10-74b4-42ca-9d84-73fa682201b5",
"name": "Execute Workflow"
},
{
"parameters": {
"mode": "manual",
"duplicateItem": false,
"assignments": {
"assignments": [
{
"id": "e2f25ebe-60ec-4901-b4a2-75fde03c6bd8",
"name": "wa_id",
"value": 962777666266,
"type": "number"
},
{
"id": "8a14b8ff-375b-4b48-b0f3-4604ee7edbf6",
"name": "wa_name",
"value": "Amin AbuDahab",
"type": "string"
},
{
"id": "9d517156-67f2-421a-9ccf-f24b95344eaf",
"name": "execution_id",
"value": "={{ $execution.id }}",
"type": "number"
}
]
},
"includeOtherFields": false,
"options": {}
},
"type": "n8n-nodes-base.set",
"typeVersion": 3.4,
"position": [
820,
440
],
"id": "5cad966b-6d79-44c5-80b9-044dfa6f2ba2",
"name": "workflow_vars"
}
],
"connections": {
"Merge": {
"main": [
[
{
"node": "AI Agent",
"type": "main",
"index": 0
}
]
]
},
"Window Buffer Memory": {
"ai_memory": [
[
{
"node": "AI Agent",
"type": "ai_memory",
"index": 0
}
]
]
},
"Get user status and memories": {
"main": [
[
{
"node": "Merge",
"type": "main",
"index": 1
}
]
]
},
"AI Agent": {
"main": [
[
{
"node": "WhatsApp Business Cloud",
"type": "main",
"index": 0
}
]
]
},
"Add memory": {
"ai_tool": [
[
{
"node": "AI Agent",
"type": "ai_tool",
"index": 0
}
]
]
},
"WhatsApp Trigger": {
"main": [
[
{
"node": "Merge",
"type": "main",
"index": 0
},
{
"node": "workflow_vars",
"type": "main",
"index": 0
}
]
]
},
"WhatsApp Business Cloud": {
"main": [
[
{
"node": "Execute Workflow",
"type": "main",
"index": 0
}
]
]
},
"Chat Model": {
"ai_languageModel": [
[
{
"node": "AI Agent",
"type": "ai_languageModel",
"index": 0
}
]
]
},
"workflow_vars": {
"main": [
[
{
"node": "Get user status and memories",
"type": "main",
"index": 0
}
]
]
}
},
"settings": {
"executionOrder": "v1"
},
"pinData": {}
},
"customData": {}
}
]
Any help is much appreciated and thanks in advance
I’ve noticed that this approach works better when The Usage Calculating workflow is called via webhook.
Btw, you can simply access {{ $execution.id }} in the node that send it to the calculating workflow, without adding it to the workflow_vars.
1 Like
I’ll try that, thanks a lot
What may be the reason for the output to be empty despite the fact that the data exists on the n8n execution?
I’m seeing the execution’s data in n8n’s output (also in its integral chat) but it is missing when sent to a hosted chat.
+1 for the feature!
I’ve just released a workflow that might help with that.
It works well with OpenAI, Google and Anthropic LLMs.
You guys might be interested @david.diaz.dev @artildo @cwysong85 @Joejoe @Renne_Jaskonis @Alex_R @Steven_Flecha @serhato @rodgermoore @Daniel_952
