Securely Self-Hosting n8n with Docker & Cloudflare Tunnel (The… Arguably Less-Painful Way)
Alright, let’s be honest. You want to run n8n. You don’t want to pay for a hosted service. You also don’t want to become a network security expert just to open a single port. I get it.
This guide outlines a method for securely self-hosting n8n using Docker and Cloudflare Tunnel (cloudflared). The goal? Remote access without the firewall headaches. We’ll be setting this up on a Linux server (Debian Bookworm was used initially, but most distributions should work). The best part? It plays nicely with Cloudflare’s free tier if you’re already using it.
Who’s this for? Anyone reasonably familiar with the Linux command line. If you can copy and paste commands, you’re probably good. If you got a domain, an old PC/server laying around, and you’re really dead set on killing half a day to save $8 a month, this guide is for you.
The payoff? A publicly accessible n8n instance without compromising your network. Consider this your “good enough” solution.
What You’ll Need (Prerequisites)
Before we begin the descent into self-hosting madness, gather these essentials:
- A Linux (or Windows) Server: A physical machine or VM. (Debian/Ubuntu are common, systemd assumed). Docker and
cloudflaredare also available for Windows if that’s your thing, though this guide focuses on Linux. - Root or
sudoAccess: You’ll need admin rights on the server. - Docker & Docker Compose: The containerization tools. Also available for Windows, see the links below.
- A Domain Name: Registered and managed through your Cloudflare account (e.g.,
yourdomain.com). - Cloudflare Account: A free account is perfectly fine.
- Basic Command Line Skills: If you’re reading this, you probably have them.
Step 1 - Getting Docker Ready
We need Docker (and Docker Compose if desired) installed.
Installing Docker Engine
Follow Docker’s official guide for your OS:
- Install Docker Engine: https://docs.docker.com/engine/install/ (Select your OS on that page. Yes, Windows is an option too.)
Pro Tip: After installing, add your user to the docker group to avoid constant sudo:
sudo usermod -aG docker $USER
Then log out/in, or run newgrp docker.
Installing Docker Compose
It helps manage container setups.
- Install Docker Compose: https://docs.docker.com/compose/install/
Step 2 - Installing cloudflared
Cloudflare’s tunnel daemon.
- Download
cloudflared: Downloads page - https://developers.cloudflare.com/cloudflare-one/connections/connect-networks/downloads/ - Install:
-
Debian/Ubuntu (
.debfile):sudo dpkg -i <path-to-your-cloudflared-package.deb> sudo apt --fix-broken install #If deps are missing
-
Step 3 - Connecting Cloudflare (cloudflared Login & Tunnel Creation)
Link to Cloudflare and create the tunnel.
Logging In
cloudflared tunnel login
It opens a browser to authenticate with your Cloudflare account.
Important: Run this as your regular user, not root. It saves the auth cert in your home directory.
Creating Your Tunnel
Creates the tunnel (give it a name, we’ll use n8n-tunnel):
cloudflared tunnel create n8n-tunnel
Important: Save the output! You need the Tunnel UUID and credentials file path.
Step 4 - Pointing Your Domain (The Magic DNS Bit!)
This connects your public hostname (e.g., n8n.yourdomain.com) to the tunnel. The cloudflared command handles the DNS CNAME creation.
Run this, replace placeholders:
cloudflared tunnel route dns <YOUR_TUNNEL_NAME_OR_UUID> <your-subdomain.yourdomain.com>
Example:
cloudflared tunnel route dns n8n-tunnel n8n.yourdomain.com
It adds a CNAME in Cloudflare DNS automatically.
Step 5 - Configuring cloudflared
Tells cloudflared what to do.
Standard location: /etc/cloudflared/config.yml
# /etc/cloudflared/config.yml
tunnel: 0354b1ee-acc8-4638-b4d7-7951160a4723 # REPLACE - Your Tunnel UUID
credentials-file: /home/local/.cloudflared/0354b1ee-acc8-4638-b4d7-7951160a4723.json #REPLACE- credential path
ingress:
- hostname: n8n.yourdomain.com # REPLACE- your desired subdomain
service: http://localhost:5678 # Points to n8n on the *host*
- service: http_status:404
Note: credentials-file path. Check where the auth file is actually stored. Default is usually /home if instructions above were followed, but can also be in /root if cloudflared tunnel login was run with sudo, ensure it can be accessed.
Step 6 - Running n8n (Choose Your Adventure!)
Use either docker run or docker compose.
Remember: WEBHOOK_URL env var must match the public URL from Step 4.
Also, the n8n subdomain here is just an example, use anything you want!
Option A - Using docker run
docker run -it -d --restart unless-stopped --name n8n \
-p 5678:5678 \
-e GENERIC_TIMEZONE="America/New_York" \
-e TZ="America/New_York" \
-e WEBHOOK_URL="https://n8n.yourdomain.com" #REPLACE -Webhook MUST match subdomain
-v n8n_data:/home/node/.n8n \
-v ./local-files:/files \ #maps a folder for local files
docker.n8n.io/n8nio/n8n
- Key Flags:
--restart: Keeps n8n running.-p 5678: Exposes n8n to the host.-v ./local-files:/files: Directory where you ran the command.
- Details: n8n Docker Documentation
Option B - Using docker compose
Create docker-compose.yml:
# docker-compose.yml
services:
n8n:
image: docker.n8n.io/n8nio/n8n
container_name: n8n
restart: unless-stopped
ports:
- "5678:5678" # Exposes port 5678 to the host
environment:
- GENERIC_TIMEZONE=America/New_York
- TZ=America/New_York
#REPLACE!!!! -Webhook MUST match subdomain
- WEBHOOK_URL=https://n8n.yourdomain.com
volumes:
- n8n_data:/home/node/.n8n
- ./local-files:/files #maps a folder for local files
volumes:
n8n_data:
Run:
docker compose up -d
- Docker Compose details: n8n Docker Compose Documentation
Verify: docker ps, and curl localhost:5678.
Step 7 - Launching the Tunnel (Finally!)
Run cloudflared as a system service for reliability.
-
Install the Service: Registers with systemd.
sudo cloudflared service install -
Enable and Start:
sudo systemctl enable --now cloudflared -
Check Status:
systemctl status cloudflaredSee if it’s running.
-
View Logs:
journalctl -u cloudflared -f
Conclusion & Benefits
Alright, that’s it. Assuming no gremlins snuck in and you didn’t skip any steps, you should have n8n running securely and accessible via your chosen public URL. Give yourself a pat on the back – you’ve navigated the sometimes-murky waters of self-hosting!
Quick Recap of Benefits
- No Open Ports: The major win. This is a significantly more secure setup than traditional port forwarding.
- Encrypted & Proxied: Traffic is encrypted via HTTPS to Cloudflare and proxied through their network.
- Cloudflare’s Network: You’re leveraging a robust, globally distributed infrastructure.
- Free-ish (For Light Use): Cloudflare’s free tier covers most home/testing scenarios.
Important Limitations & Warnings (Read This!)
- Scalability Caveat: This setup is primarily intended for development, testing, or light personal use. It is not a robust, scalable solution for high-traffic production environments. Proceed at your own risk.
- Cloudflare Cost Implications: While the tunnel itself can be free, Cloudflare might start charging you if you push excessive amounts of traffic through their network. Monitor your Cloudflare usage carefully. High webhook volumes, large file transfers, or frequent UI access can all contribute to increased traffic.
- This Is Not a Fortress: Cloudflare Tunnel provides a good baseline level of security, but it is not a replacement for proper security practices inside your network or within n8n itself. Always keep your n8n instance updated.
Final Checks, Security Hardening & Enjoy
- Testing, Testing: Visit
https://<your-subdomain.yourdomain.com>. If it doesn’t load, double-check everything (again). Seriously. - Troubleshooting Power-Ups: If things explode, start by:
- Reviewing
/etc/cloudflared/config.yml(Tunnel UUID and hostname). - Verifying the
cloudflared tunnel route dns ...command syntax. - Confirming the n8n Docker config has the correct
WEBHOOK_URL. - Checking
cloudflaredservice status (systemctl status cloudflared) and logs (journalctl -u cloudflared -f).
- Reviewing
- n8n’s Admin Panel on non-dev boxes: Look into configuring user management on your n8n server. This will avoid any security issues relating to this.
- Serious Security Considerations (Beyond the Scope of This Guide):

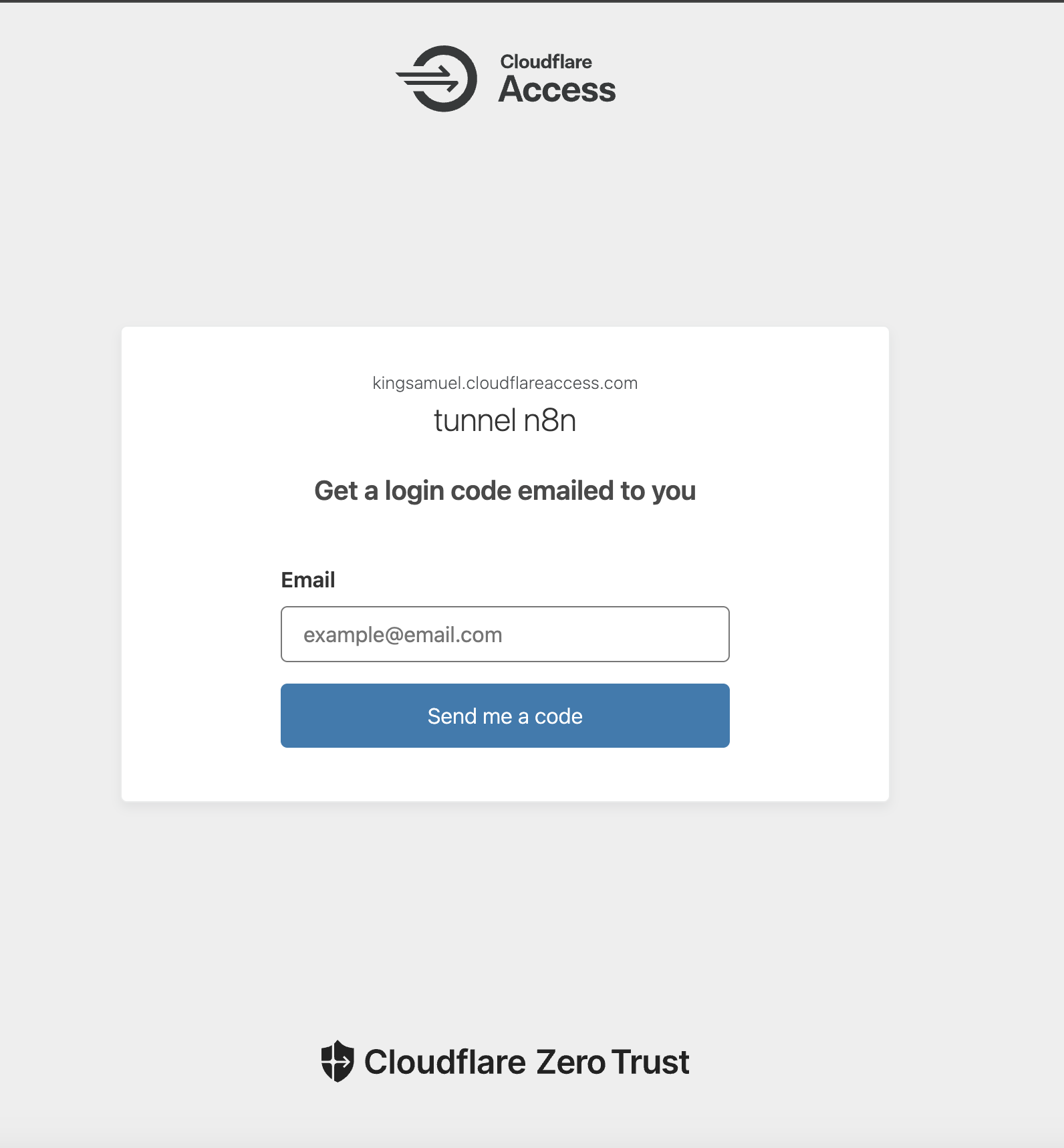

- For production environments, consider using Cloudflare Access (WARP) to add an additional layer of authentication before reaching your n8n instance. This allows only authorized users to access the n8n UI, even though the tunnel is publicly accessible.
- You’ll also need to create Cloudflare routing rules to allow inbound traffic from valid webhooks URLs (e.g.,
https://n8n.yourdomain.com/webhook/*) and require authentication for all other traffic (especially access to the n8n login panel).
Hopefully, this was helpful. Happy Automating
